Iris CMAC-HVR 16-Channel Hybrid Recorder, 1TB, Recorder Only
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

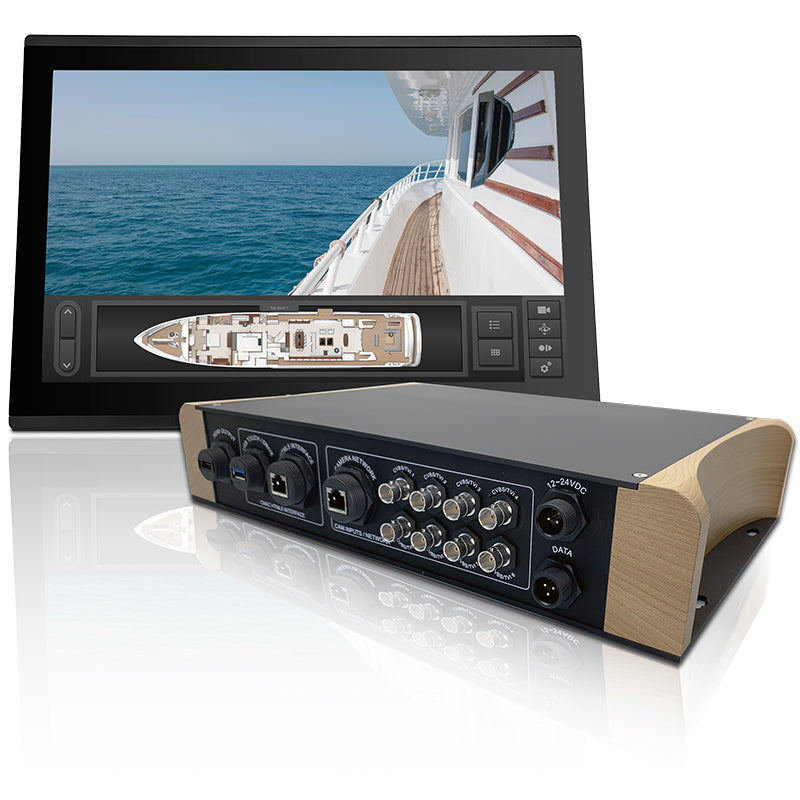

The CMAC-HVR is a rugged hybrid recording device for a boat's camera system, connecting both network (IP) cameras and analogue formats on a single unit. It accepts legacy composite (CVBS) video alongside AHD, HD-TVI and HD-CVI analogue high-definition cameras, so a mixed or legacy camera set works without replacement and the installation is future-proofed as cameras are upgraded.
This X model is the standalone recorder. It outputs high-definition HDMI video to chart plotters, monitors and televisions and can be viewed and controlled through a web browser or the XMEye app, with built-in WiFi and remote P2P connectivity for access on board or away from the boat. For full chart-plotter integration and the on-screen virtual joystick, choose the IrisControl-hosting G model instead.
The integrated network video recorder is fully configurable for resolution, frame rate and motion-triggered recording, and ships with a 1TB drive in a removable anti-shock caddy that is expandable as storage needs grow.
PRODUCT DETAILS
- 16-channel hybrid recorder: accepts IP, analogue CVBS, AHD, HD-TVI and HD-CVI cameras on one unit
- Standalone network video recorder (no IrisControl chart-plotter app)
- High-definition HDMI video output for plotters, monitors and TVs
- View and control via web browser or XMEye app
- Built-in network video recorder, fully configurable for resolution, frame rate and motion recording
- Supplied with 1TB anti-vibration HDD caddy, expandable storage
- WiFi and remote P2P access to view your cameras on phone, tablet or computer
- Wide 12 to 24VDC input range and rugged, compact case
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Recorder
| Type | Hybrid recorder (NVR + DVR) |
| Channels | 16 channels |
| Camera Inputs | 8 x BNC for CVBS, AHD, HD-TVI, HD-CVI plus IP cameras over RJ45 |
| Network Camera Capacity | Up to 16 IP cameras at 1080p |
| Recording Resolution | Up to 16 x 2MP / 4 x 5MP / 4 x 3MP (IP); 8 x 5MP analogue |
| Video Codec | H.265 |
Storage
| Storage | 1 x 2.5" SATA removable anti-vibration HDD caddy; 1TB supplied |
Compatibility
| Control Interface | Standalone recorder; view/control via web browser or XMEye app (no IrisControl chart-plotter app) |
Video Output
| Output | 1 x HDMI (high definition) |
Connectivity
| Serial Data | RS485 for PTZ control (multi-protocol) |
| Network | RJ45 camera network plus Gigabit RJ45 for hosting IrisControl |
| Remote Access | WiFi and remote P2P; web browser and XMEye app |
| USB Touch | USB touch control interface for compatible MFDs |
Power
| Power | +12VDC to +24VDC, <2A @ 12VDC |
Environmental
| Operating Temperature | -10C to +55C |
Physical
| Dimensions | 430 x 285 x 150 mm |
