Iris CMAC-INT-002 Hybrid Camera Interface and IrisControl Host
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

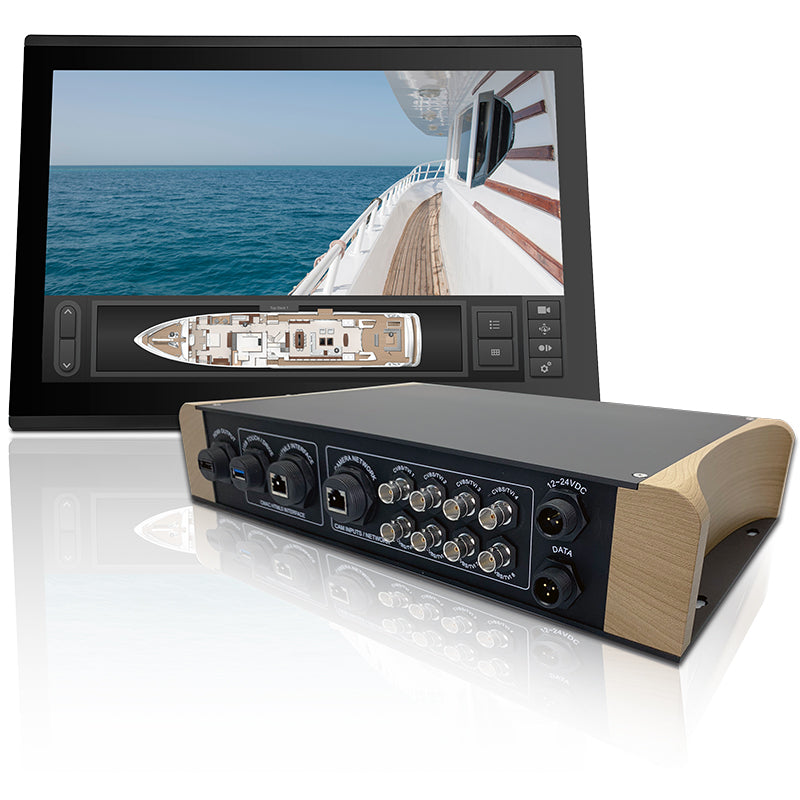

The CMAC-INT-002 is the hybrid, non-recording camera management interface in the CMAC range. It accepts up to eight analogue inputs across CVBS, AHD, HD-TVI and HD-CVI formats through BNC connectors, plus up to 32 IP cameras to 4K over the camera network, and presents them as a high-definition HDMI feed to a compatible multifunction display.
Hosting the IrisControl HTML5 application, it lets you upload deck plans, drag and drop camera icons, switch inputs, select quad and multi-screen views and drive PTZ cameras over RS485 using the on-screen virtual joystick or an optional IRIS595 joystick or IRIS-TE01 rotary controller. A built-in web encoder adds remote and wireless viewing, and USB touch control is supported on compatible Garmin displays. Choose a CMAC-HVR if on-board recording is required.
PRODUCT DETAILS
- Hybrid camera interface: up to 8 analogue or analogue HD (CVBS, AHD, HD-TVI, HD-CVI) plus up to 32 IP cameras
- Hosts the IrisControl HTML5 app for Garmin, Raymarine, Simrad and Furuno MFDs
- High-definition HDMI video output
- RS485 serial data output for PTZ control
- Switch cameras and select quad and multi-screen views from your MFD
- Built-in web encoder for remote and wireless connection
- USB touch control support; optional IRIS595 joystick or IRIS-TE01 rotary controller
- No on-board recording (control and switching only)
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Interface
| Type | Hybrid camera interface and IrisControl host (no recording) |
| Processor | Novatek NT98323 |
| Video Codec | H.264, H.264+, H.265 |
| Analogue Inputs | 8 x BNC for CVBS, AHD, HD-TVI, HD-CVI |
| IP Camera Capacity | Up to 32 IP cameras (to 4K resolution) |
Video Output
| Output | 1 x HDMI (high definition) |
Connectivity
| Serial Data | RS485 for PTZ control (multi-protocol) |
| Control Interface | Hosts IrisControl for Garmin OneHelm, Raymarine LightHouse, Simrad and Furuno |
| Hardware Control | USB touch (Garmin 8xxx); optional IRIS595 joystick or IRIS-TE01 rotary controller |
Power
| Power | +12VDC to +24VDC; boot peak 1.5A, 400mA nominal |
Environmental
| Operating Temperature | -10C to +55C |
Compliance
| Approvals | CE, UKCA, FCC, RoHS, REACH, NDAA compliant; EN60945 Section 9 & 10 |
Physical
| Dimensions | 280 x 192 x 60 mm |
| Weight | 0.92 kg |
