Iris VDA0416 Video Distribution Amplifier, 4 In / 4 Out per Channel
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

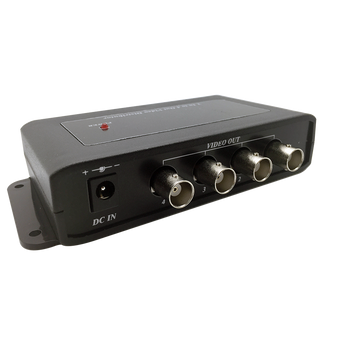

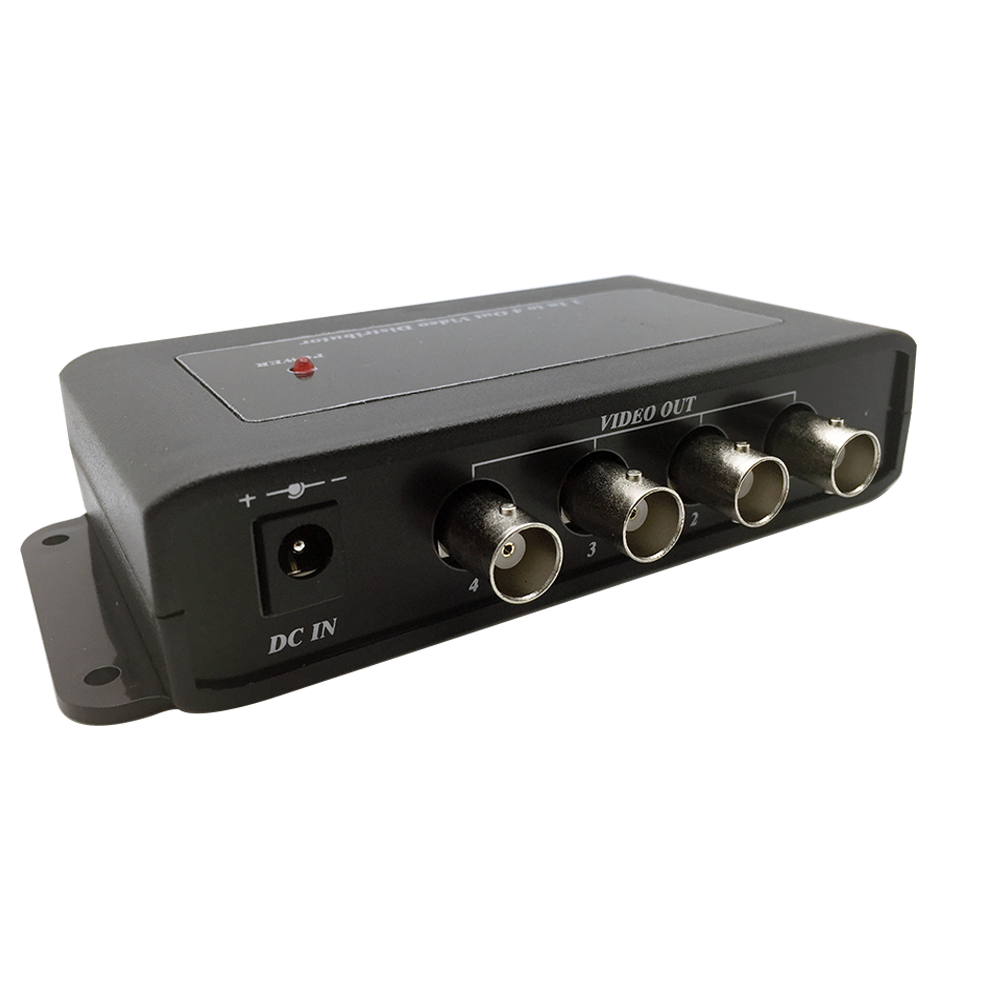

The VDA0416 is a compact video distribution amplifier with four independent channels. Each channel boosts or attenuates a composite video signal to a clean 1-volt peak-to-peak level and distributes it across four outputs, making it ideal where multiple camera feeds need to be shown on several screens or driven across long cable runs.
Like the rest of the Iris VDA range, the unit uses standard composite-video female BNC connectors, installs simply via moulded fixing points and runs from a low-power 12V DC supply, providing clean, well-balanced video throughout a larger on board camera system.
PRODUCT DETAILS
- Four independent composite (CVBS) video channels
- Four outputs per channel
- Boosts or attenuates video to a clean 1Vp-p level
- Standard female BNC connectors
- 12V DC operation, low power
- Compact housing with moulded fixing points
- Ideal for multi-camera, multi-screen installations
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Video
| Inputs | 4 x Composite (CVBS), 1Vp-p / 75 ohm |
| Outputs | 4 outputs per channel (BNC) |
| Connectors | Female BNC |
Power
| Supply | 12V DC |
