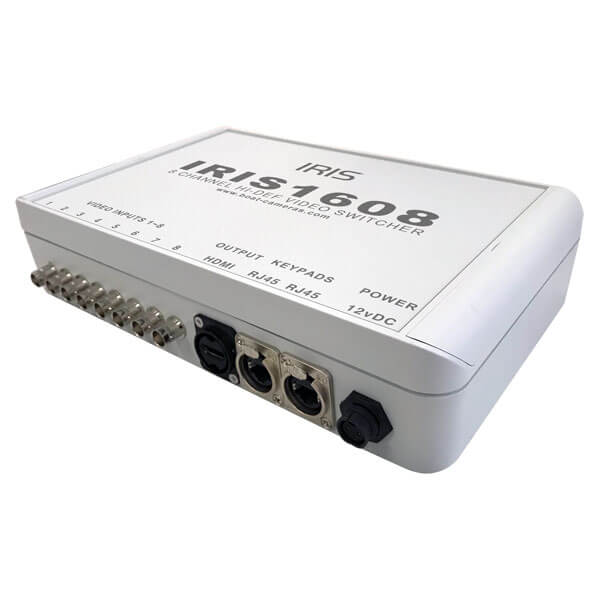

Iris IRIS1608 iHD 8-Channel HD Video Switcher with Keypad
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The IRIS1608 is the world's first dedicated marine high-definition video switcher, with eight camera inputs that can be switched to a single HDMI output to display real-time video from your high-definition Iris cameras on a suitable chart plotter or HD TV. It is compatible with chart plotters featuring a digital input, TVs with HDMI inputs and other HDMI-enabled media.
The system comprises a rugged control box and a low-profile, compact, waterproof keypad. The control box installs safely out of sight to keep cabling tidy, while the supplied IRIS580 keypad provides a simple control interface and connects over a single shielded CAT5 cable with a built-in RJ45 socket.
A second keypad port allows an additional IRIS580 keypad so video can be switched from more than one position. For digital inputs other than HDMI, such as DVI or HD-SDI, adapters are available from Iris.
PRODUCT DETAILS
- Eight camera inputs switched to a single HDMI output
- Supports analogue (CVBS) and HD-TVI camera formats
- Supplied with one waterproof IRIS580 keypad (IP66, UV stabilised)
- Keypad connects over a single shielded CAT5 cable with RJ45 socket
- Second keypad port for control from an additional position
- Rugged moisture-resistant control box installs out of sight
- Compatible with HDMI chart plotters, HD TVs and HDMI media
- DVI and HD-SDI adapters available from Iris
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Video
| Camera Inputs | 8 (Analogue CVBS / HD-TVI) |
| Video Output | 1 x HDMI (Hi-Def digital) |
Connectivity
| Keypad Ports | 2 (1 x IRIS580 keypad supplied) |
| Keypad Cabling | Shielded CAT5 with RJ45 socket |
