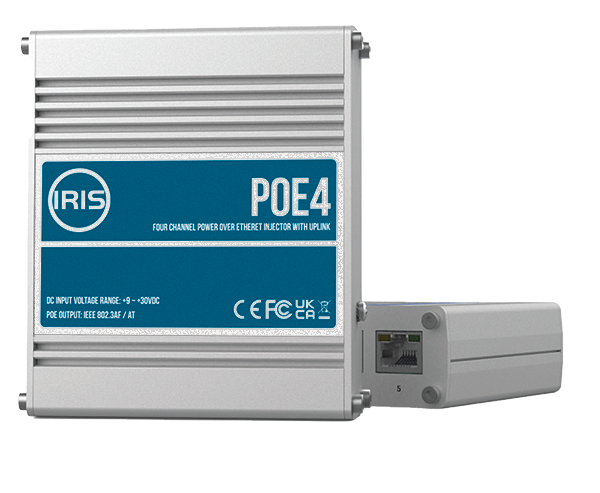

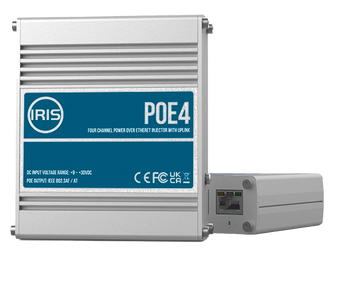

Iris PoE04v2 Four-Channel PoE Injector
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The PoE04v2 is a four-channel plus uplink Power over Ethernet switch that operates across a wide 9 to 30V DC input range, making it ideal for powering IEEE 802.3af/at devices from battery sources such as boats and vehicles. It outputs 48V DC with a 60W total power budget and up to 30W per port, so it can run four devices at 15W each, two at 30W each, or one at 30W plus two at 15W.
A passive uplink port allows connection to other network switches, routers or modems. Because only a single network cable is needed to both connect and power each device, the PoE04v2 simplifies installation, reduces cost and adds convenience. It is plug and play with no configuration required and is supplied with a panel-mount fixing kit.
PRODUCT DETAILS
- Four-channel plus uplink Power over Ethernet switch
- Wide 9 to 30V DC input, ideal for battery-powered vessels
- IEEE 802.3af / 3at (PoE+) compliant, delivers up to 48V DC
- 60W total budget, up to 30W per port
- Powers devices up to 100m cable length
- Passive uplink port for connecting further network equipment
- Plug and play with no configuration required
- Supplied with panel-mount fixing kit
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Connectivity
| Channels | 4 channels plus passive uplink |
| Cable Length | Up to 100m per device |
Power
| Input Voltage | 9 to 30V DC |
| PoE Output | Up to 48V DC, IEEE 802.3af/3at |
| Power Budget | 60W total, up to 30W per port |
Physical
| Dimensions | 150 x 122 x 32 mm |
| Weight | 0.7 kg |
