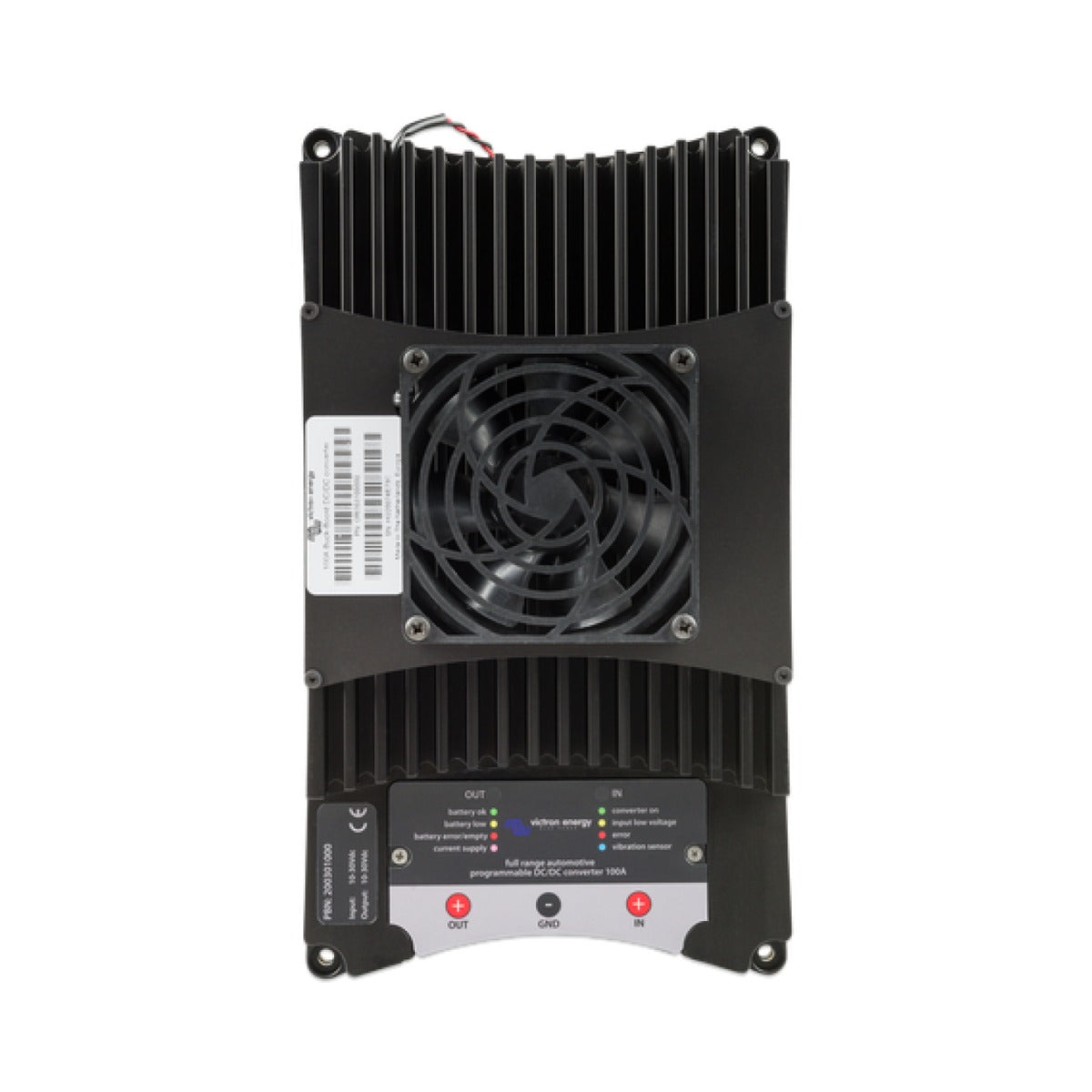

Victron Orion Buck-Boost DC-DC 12/24V 100A
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Buck-Boost DC-DC Converter is a programmable converter for charging a 12V or 24V service battery in vehicles fitted with a smart alternator, such as those with regenerative braking and Euro 5 or Euro 6 engines. On these vehicles the alternator voltage varies widely and can be too high or too low to charge an auxiliary battery correctly. The Buck-Boost charges the auxiliary battery at a stable, pre-set voltage regardless of what the alternator is doing, eliminating both the high voltages (for example 15.4 V on some Mercedes systems) and the low voltages a smart alternator produces.
A single unit works with 12V, 24V and mixed 12/24V systems: it can be programmed to charge a 12V or a 24V auxiliary battery from either a 12V or a 24V alternator and starter battery. A built-in engine-running detection system prevents deep discharge of the vehicle's starter battery, and the converter can alternatively be switched by a programmable input (D+, CAN bus or a (+)15 connection). This 100A model is the largest in the range and charges an auxiliary battery at up to 100 A on a 12V system or 50 A on a 24V system.
The converter is fully programmable through a simple PC application (a USB type A to type B cable is required), letting you set charge current, input current limit and charge parameters. Separate input and output status LEDs report converter state, input voltage, engine detection and battery condition at a glance.
PRODUCT DETAILS
- Charges a 12V or 24V auxiliary battery in vehicles with a smart alternator
- Maintains a stable pre-set charge voltage regardless of variable alternator output
- One unit for 12V, 24V and mixed 12/24V systems
- Charge current up to 100 A at 12V (50 A at 24V)
- Built-in engine-running detection prevents deep discharge of the starter battery
- Programmable activation input (D+, CAN bus or (+)15 connection)
- Fully programmable via a user-friendly PC application
- Separate input and output status LEDs for at-a-glance diagnostics
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Input voltage range | 10 to 30 V |
| Output voltage | 10 to 30 V (12V or 24V, programmable) |
| Maximum charge current | 12V: 100 A / 24V: 50 A |
| Galvanic isolation | No |
| Bluetooth | No |
Input
| Input voltage range | 10 to 30 V |
| Under-voltage threshold | 10 V |
Output
| Nominal output voltage | 12 V or 24 V (programmable) |
Charger
| Maximum charge current | 12V: 100 A / 24V: 50 A |
| Engine shutdown detection | Built-in engine-running detection |
| CAN bus connection | Yes |
General
| Galvanic isolation | No |
| Remote on/off | Programmable on/off input (pin 1); 'on' threshold > 2 V, max 30 V |
| Power consumption (off, LEDs off, power-save mode) | 7 mA |
Environmental
| Operating temperature range | -25 to +60°C |
Physical
| Weight | 4.1 kg |
| Dimensions (h x w x d) | 288 x 162 x 95 mm |
