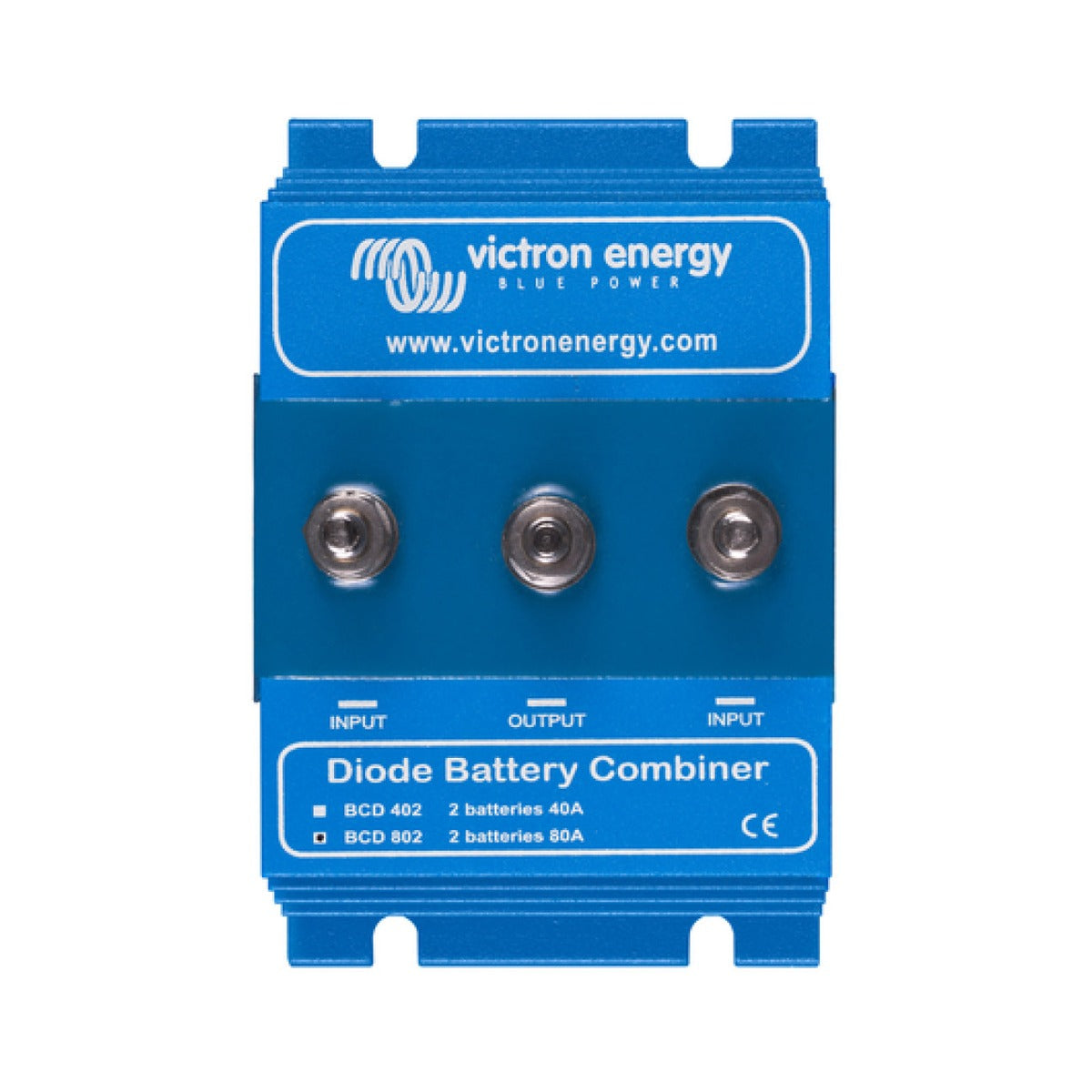

Victron Battery Combining Diode 40A
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Battery Combining Diode 40A guarantees continuous DC power to mission-critical equipment, such as an electronic engine control system. It combines two or more DC power sources in parallel to feed a single critical load, so if one source fails the other keeps power flowing without interruption.
Inside are two Schottky diodes, each allowing current to pass only from its own battery input to the shared, combined output. This blocks any reverse flow between the two sources while introducing only a low voltage drop, approximately 0.3 V at light load and about 0.45 V at the rated output. The unit adjusts automatically to 12 V or 24 V systems.
Note that the diodes run hot in use, so the combiner must be mounted on a non-flammable surface. Its compact steel enclosure and M6 bolt terminals suit marine and vehicle installations where redundant DC supply to essential electronics is required.
PRODUCT DETAILS
- Keeps power flowing to critical DC loads if one source fails
- Combines two DC power sources in parallel to one output
- Two Schottky diodes block reverse current between the sources
- Low voltage drop, approximately 0.3 V at low current and 0.45 V at rated output
- Automatically suits 12 V and 24 V systems
- M6 bolt connections
- Mount on a non-flammable surface (hot surface in use)
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Maximum continuous current | 40 A |
| Number of battery inputs | 2 |
| Number of outputs | 1 (combined) |
| Nominal battery voltage | 12 V and 24 V |
| Technology | Schottky combining diode |
Performance
| Voltage drop | Approximately 0.3 V at low current, 0.45 V at rated output |
Physical
| Connection | M6 bolts |
| Dimensions (h x w x d) | 60 x 120 x 75 mm |
| Weight | 0.8 kg |
Conformance
| Warranty | 5 years |
