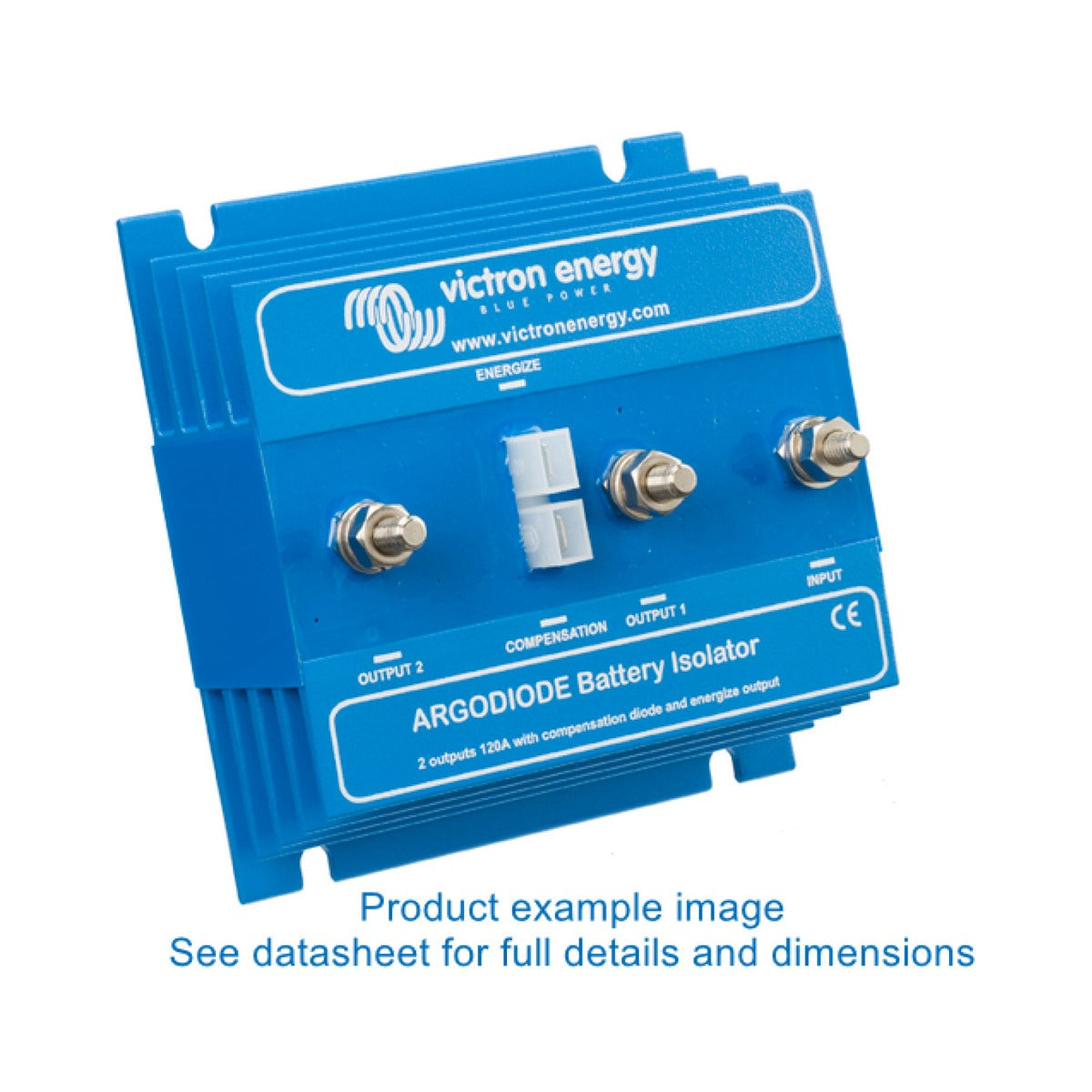

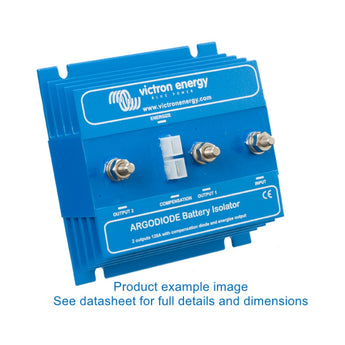

Victron Argo Diode Battery Isolator 80A Schottky (2 Outputs)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Argo Diode Battery Isolator 80A (Schottky) charges two independent battery banks from a single alternator or charger while keeping them fully isolated. Discharging one bank, such as a domestic service battery, cannot flatten the other, so the engine start battery stays protected and ready to crank.
This version uses low-drop Schottky diodes for isolation, giving a forward voltage drop of roughly 0.3 V at light load and about 0.45 V at the rated output. A fitted compensation diode allows the alternator output voltage to be raised slightly to offset the diode drop. It is the base 80A model without an alternator energize input, suiting installations whose alternator does not need external B+ excitation.
The isolator adjusts automatically to 12 V or 24 V systems and needs no control wiring or maintenance. Its compact steel enclosure suits marine, motorhome and off-grid setups where two banks share one charge source.
PRODUCT DETAILS
- Charges two isolated battery banks from a single alternator or charger
- Prevents cross-discharge between service and engine start batteries
- Low-loss Schottky diodes, approximately 0.3 V drop at low current and 0.45 V at rated output
- Compensation diode to raise alternator voltage and offset the diode drop
- Base model without alternator energize input
- Automatically suits 12 V and 24 V systems
- M6 stud connections, no maintenance required
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Maximum charge current | 80 A |
| Number of outputs | 2 |
| Nominal battery voltage | 12 V and 24 V |
| Technology | Schottky diode isolator |
Performance
| Maximum alternator current | 80 A |
| Voltage drop | Approximately 0.3 V at low current, 0.45 V at rated output |
| Compensation diode | Yes |
| Alternator energize input | No |
Physical
| Connection | M6 studs |
| Compensation diode connection | 6.3 mm Faston |
| Dimensions (h x w x d) | 60 x 120 x 75 mm |
| Weight | 0.5 kg |
Conformance
| Warranty | 5 years |
