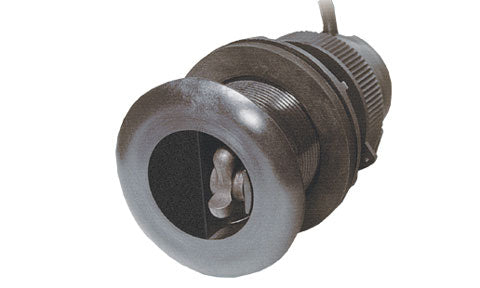

B&G, Lowrance, Simrad DST800 Smart Plastic Depth, Speed, Temp Transducer
Manufacturer Part Number:
22098552
Manufacturer Part Number:
22098552
The DST800 Smart Speed, Depth Temperature Low Profile Plastic Through Hull Retractable Transducer.Operates at 235kHz so there is no interference with your 50/200 kHz fishfinder transducer. Compatible hull material: metal and fiberglass. 0.5 meter cable with Micro-C connector. Hole diameter for installation: 2 inch
Home or Marina Delivery
Pick up at Hamble
More Information
Network Sensors Navigation
Features
- The all-in-one Smart Sensor
- Depth, speed, and temperature in one compact housing
- Available in NMEA 0183 and NMEA 2000® versions
- 235 kHz frequency prevents mutual interference with other echosounders on the vessel

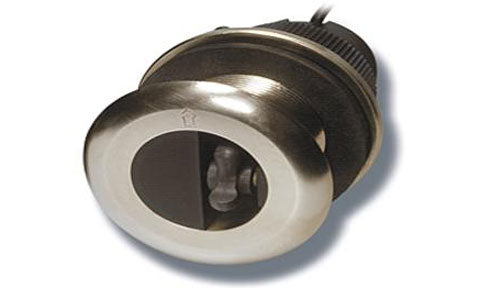

- Plastic, bronze, or stainless steel housings available
- Fast-response temperature sensor provides ±0.2°C (±0.1°F) accuracy
- Available as a Smart Sensor at 235 kHz or an analog output sensor operating at 200 kHz or 235 kHz
- Available in low-profile, countersunk, or beveled-edge housings
Specifications
- Weight:
- 0.9 kg (2.0 lb)—Plastic
- 1.6 kg (3.5 lb)—Bronze
- 1.9 kg (4.2 lb)—Stainless Steel
- Acoustic Window: Urethane
- Hull Deadrise: Up to 22°
- Data Update Rate: 1 per second
- Minimum Depth Range: 0.5 m (1.6’)
- Maximum Depth Range:
- Up to 70 m (230’)—NMEA 0183
- Up to 100 m (330’)—NMEA 2000
- Pressure Rating: 3 m (10’)
- Pulse Rate: 20,000 p/nm* (5.6 Hz per knot)
- *p/nm = pulses per nautical mile
- Supply Voltage:
- 10 VDC to 25 VDC—NMEA 0183
- 9 VDC to 16 VDC—NMEA 2000
- Supply Current:
- <40 mA &em; NMEA0183
- <200 mA &em; NMEA2000
- Standard Cable Length:
- 10 m (33’)—NMEA 0183 cable
- 6 m (20’)—NMEA 2000 cable
- Temperature Sensor Accuracy: ±0.5°C (±1.8°F)
- Temperature Sensor Range: -10°C to 40°C (14°F to 104°F)
- NMEA 2000® Load Equivalency Number (LEN): 4
- CE Regulation: Complies to IERC60945
