B&G V90 Black Box VHF system with AIS Rx
Manufacturer Part Number:
000-11676-001
Manufacturer Part Number:
000-11676-001
B&G’s powerful V90 VHF radio blends intelligent design with advanced engineering in a rugged, reliable and feature-packed sailing communications device. With all the major components housed in a discreet black box below deck, the stylish handset is the unit’s only visible component, making it neat and easy to store. The V90 can support an impressive 6 handsets (4 wired, 2 wireless), giving it the scalability you need. The handset is encased in rubber, for durability and a confident grip in all weather conditions with large, backlit display and alpha numeric keyboard for supreme readability and operability.
Home or Marina Delivery
Pick up at Hamble
More Information
VHF Navigation
Base Unit
Dimensions
Handset
Dimensions

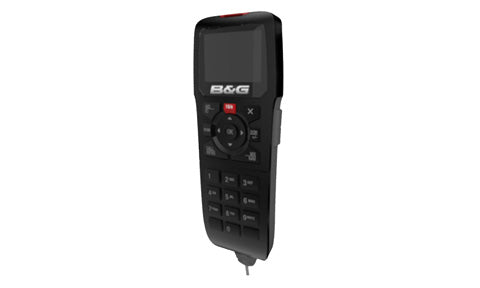

Wired handset
-
H90 wired handset with cradle
-
5 m handset connector cable, including mid-cable connector
-
Flush mounting plate for handset connector cable socket
-
Silicon cover for cable connector
-
Handset fasteners:
-
M3.5 x 15 mm selftapping screw x2 (cable mounting plate)
-
M3.5 x 10 mm selftapping screw x2
-
M3 x 40 mm selftapping screw x1
-
M3.5 x 28 mm machine screw x2
-
M3.0 x 40 mm machine screw x1
-
M3.5 nut x2
-
M3.0 nut x1
-
Spring washers and at washers

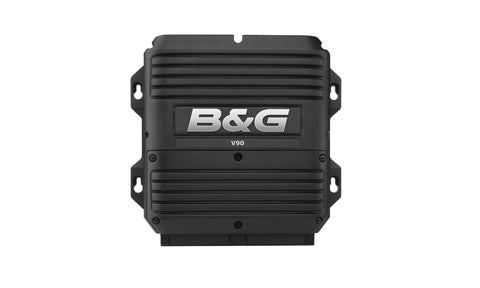

Transceiver
-
V90 transceiver unit
-
2 m power supply cable
-
8-pin terminal connector x4
-
2-pin terminal connector x2
-
Special mounting bracket
-
Cable ties x 10
-
Spare 10 A fuse
-
Transceiver fasteners:
-
M3.5 x 23 mm selftapping screw x4
-
M3.5 x 28 mm machine screw x4
-
M3.5 hex nut x4
-
Flat washer x4

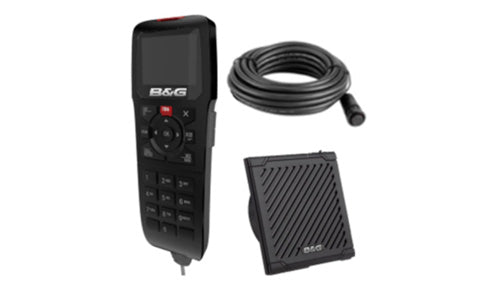

External speaker unit
-
-
-
External speaker (with 5m cable)
-
Foam gasket (for ush mounting)
-
Plastic speaker surface mount box
• Speaker fasteners:
-
M3 x 40 mm selftapping screw x4
-
M3 x 10 mm selftapping screw x4
-
M3 x 10 mm machine screw x4
-
M3 x 40 mm machine screw x4
-
M3 nut x8
-
Spring washer x8
-
Flat washer x8
Documentation
-
Operating Manual 988-10723-001
-
Installation Manual 988-10728-001 (this document)
-
Warranty Card
-
DSC Warning Label
-
Declaration of Conformity document (where applicable)
Approvals
| Compliance | ITU-R M493-13 US Models; EN300-338-3 EU Models |
|---|
Communications
| Channels | 55 INT;53 USA; 61 CAN; 10 Weather |
|---|---|
| DSC Class | Class D |
| Frequency Range | Tx MHz 156.025 To 157.425 ; Rx MHz 156.025 To 163.275 |
| Hailer Function | 30W @ 4 Ohms |
| Handset type | Handset |
| Horn Function | 30W |
| Intercom | 4 Wired Stations 1 Wireless |
| Multiple Stations | 4 Wired Stations with Additional 2 HS90 Wireless Remotes |
| Transmit Power | 23 +/- 2 W |
Connectivity
| NMEA 0183 Sentences supported | Output:DSC,DSE,VDM Input:RMC,GGA,GLL,GNS |
|---|---|
| N2K PGNs |
127250;127258;129025;129026;129029;129033;129038;129039;129040; 129041;129283;129284;129285;129792;129793;129794;129795;129796; 129797;129798;129799;129800;129801;129802;129803;129804;129805; 129806;129807;129808;129809;129810;130074;130842 |
| NMEA 0183 | 2x Tx, 1x Rx NMEA 0183, Baud Rate 4,800 -38400 |
| NMEA 2000 | 1x NMEA 20000 Micro-C port, 1 LEN |
Display
| Backlight Color | Amber |
|---|---|
| Resolution | 128x156px |
Electrical
| Battery | 12V DC |
|---|---|
| Power Consumption, max. | 78W |
| Recommended Fuse Rating | 10A |
| Supply Voltage | 12VDC |
Environment
| Operating Temperature Range | -20ºC to +55ºC (-4ºF to 131ºF) |
|---|---|
| Waterproof rating | JIS-7 |
MFD
| Compass Safe Distance - Metric, imperial | 0.5m (1.5') |
|---|
Physical
| Dimensions (W x H x D) | 211.2 x 6.50 x 195.7mm ( 8.31 x 2.56 x 7.7" ) |
|---|---|
| Mounting Type | Bracket |
Other
| Warranty Period | 2 Years |
|---|---|
| Interface | Keypad controls |
