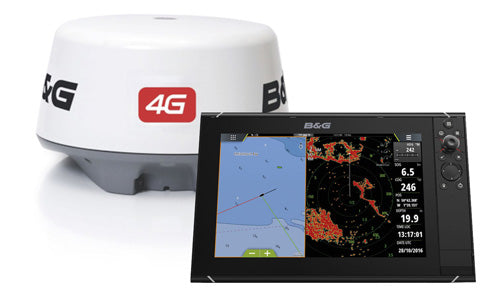

B&G Zeus3 12 ROW 4G Radar Bundle
Manufacturer Part Number:
000-13807-001
Manufacturer Part Number:
000-13807-001
The Zeus³-12 is an easy-to-use chartplotter navigation system for blue water cruisers and regatta racers, incorporating a 12-inch touchscreen display, high-performance electronics, and a wide range of functionality designed specifically for sailors. World basemap charts.Unit features: A super-bright 12″ SolarMAX™ HD display with ultra-wide viewing angles. Dedicated sailing features such as SailSteer, Laylines and RacePanel. High-performance processor for responsive operation and quick chart redraw. All-weather touchscreen plus full rotary and keypad controls. Wi-Fi enabled for easy access to charts, weather, updates, support, and screen mirroring. Built-in ForwardScan™ sonar support for safer passage through shallow waters. Bundled with Broadband 4G™ Radar Pack.
Home or Marina Delivery
Pick up at Hamble
More Information
Zeus3 Multi-function Display Navigation
Zeus3 7 Dimensions
Product Width 239mm / 9.4″
Product Height 150mm / 5.9″
Product Depth 90mm / 3.5″
Zeus3 9 Dimensions
Product Width 287mm / 11.30″
Product Height 166mm / 6.55″
Product Depth 90mm / 3.5″
Zeus3 12 Dimensions
Product Width 352mm / 13.84″
Product Height 225mm / 8.85″
Product Depth 98mm / 3.82″
Zeus3 16 Dimensions
Product Width 437mm / 117.19″
Product Height 256mm / 10.08″
Product Depth 98mm / 3.82″
In the Box
1. Display unit
2. Sun cover
3. Bezel trim
4. Power cable
5. Self tapping pozi screws, 4Gx1/2” (x4 for 7", x8 for 9"/12", & x12 for 16" units)
6. Dust caps, different sizes for NMEA 2000 (x1), Ethernet (x1 for 7"/9", x2 for 12"/16") and Sonar (x2) connectors
7. Dust cap for HDMI connector (12" and 16" only)
8. Dust cap for Video/NMEA 0183 connector
9. Dust cap for USB (16" only)
10. Document pack
11. Foam gasket (self adhesive)
1.2 U-bracket
13. Bracket knobs
14. Self tapping pozi screws for bracket, 14G x 1”
B&G, Lowrance, Simrad SC20 Mast mount kit for Broadband Radar
B&G, Lowrance, Simrad RI10 - Radar Interface Junction Box for Broadband Radars
B&G, Lowrance, Simrad Broadband Radar Scanner connection cable - 10 m (33 ft)
B&G, Lowrance, Simrad Broadband Radar Scanner connection cable - 20 m (66 ft)
B&G, Lowrance, Simrad Broadband Radar Scanner connection cable - 30 m (98 ft)
Dimensions for
B&G 3G and 4G
Lowrance 3G and 4G
Simrad 3G and 4G
Underside Dimensions
A. Cable entry area
B. Cable retention channel
C. Bolt holes x 4 M8 x 30 mm
D. Breather
RI 10 Dimensions
Radar interface box
B&G Zeus3 12, Simrad NSS12 Evo3 Mounting Bracket
B&G Zeus3 12, Simrad NSS12 Evo3 Dash Mount Kit
B&G Zeus3 12, Simrad NSS12 Evo3 Edge Bezels
B&G, Simrad 4 Pin Power Cable
B&G Zeus3, Simrad NSS Evo3 Chart Card Door
B&G Zeus3 12 Sun Cover
B&G, Simrad Zeus / Zeus Touch Video/Comms Cable
In the Box
1. 3G or 4G Broadband Radar
2. Radar interconnection cable
Lowrance 10 meter
B&G and Simrad 20 meter
3. Option heading sensor required for MARPA and chart overlay (not included)
4. RI10 Radar interface box
5. Ethernet cable: shipped with 1.8 m (6 ft)
6. Display: Simrad NSO, NSE or NSS / B&G Zeus / Lowrance HDS (not included).
7. SimNet or NMEA2000 data network (not included)
