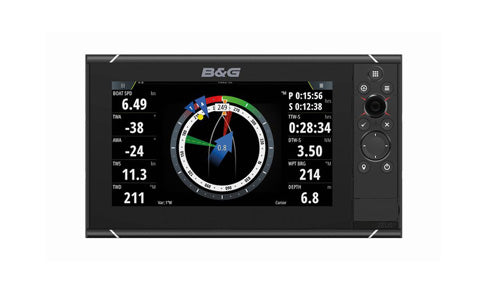

B&G Zeus3-9 MFD,World Basemap
Manufacturer Part Number:
000-13246-001
Manufacturer Part Number:
000-13246-001
The Zeus³-9 is an easy-to-use chartplotter navigation system for blue water cruisers and regatta racers, incorporating a 9-inch touchscreen display, high-performance electronics, and a wide range of functionality designed specifically for sailors. World base map charts.Unit features: A super-bright 9″ SolarMAX HD display with ultra-wide viewing angles. Dedicated sailing features such as SailSteer, Laylines and RacePanel. High-performance processor for responsive operation and quick chart redraw. All-weather touchscreen plus full rotary and keypad controls. Wi-Fi enabled for easy access to charts, weather, updates, support and screen mirroring. Built-in ForwardScan™ sonar support for safer passage through shallow waters
Home or Marina Delivery
Pick up at Hamble
More Information
B&G Zeus3 9, Simrad NSS9 Evo3 Mounting Bracket
B&G Zeus3 9, Simrad NSS9 Evo3 Dash Mount Kit
B&G Zeus3 9, Simrad NSS9 Evo3 Edge Bezels
B&G Zeus3 9 Sun Cover
B&G, Simrad 4 Pin Power Cable
B&G Zeus3, Simrad NSS Evo3 Chart Card Door
B&G, Simrad Zeus / Zeus Touch Video/Comms Cable
Zeus3 Multi-function Display Navigation
Zeus3 7 Dimensions
Product Width 239mm / 9.4″
Product Height 150mm / 5.9″
Product Depth 90mm / 3.5″
Zeus3 9 Dimensions
Product Width 287mm / 11.30″
Product Height 166mm / 6.55″
Product Depth 90mm / 3.5″
Zeus3 12 Dimensions
Product Width 352mm / 13.84″
Product Height 225mm / 8.85″
Product Depth 98mm / 3.82″
Zeus3 16 Dimensions
Product Width 437mm / 117.19″
Product Height 256mm / 10.08″
Product Depth 98mm / 3.82″
In the Box
1. Display unit
2. Sun cover
3. Bezel trim
4. Power cable
5. Self tapping pozi screws, 4Gx1/2” (x4 for 7", x8 for 9"/12", & x12 for 16" units)
6. Dust caps, different sizes for NMEA 2000 (x1), Ethernet (x1 for 7"/9", x2 for 12"/16") and Sonar (x2) connectors
7. Dust cap for HDMI connector (12" and 16" only)
8. Dust cap for Video/NMEA 0183 connector
9. Dust cap for USB (16" only)
10. Document pack
11. Foam gasket (self adhesive)
1.2 U-bracket
13. Bracket knobs
14. Self tapping pozi screws for bracket, 14G x 1”
