Victron

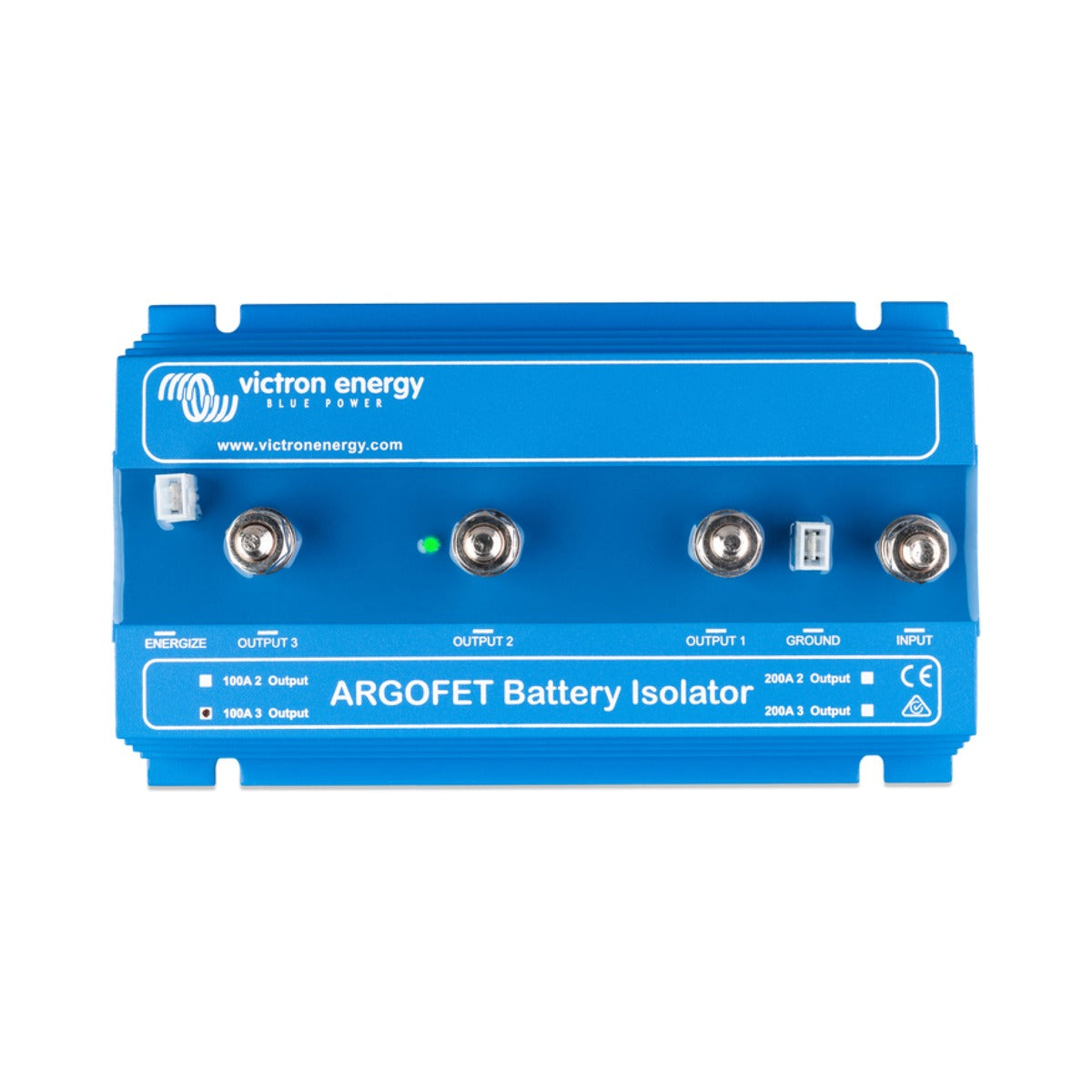

Victron Argofet Battery Isolator 100A (3 Outputs)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Argofet Battery Isolator 100A charges three independent battery banks from a single alternator or charger while keeping all three fully isolated from one another. Discharging one bank, such as a domestic service battery, will not draw down the others, so the engine start battery is always protected and ready.
Unlike diode isolators, the Argofet uses FET (field-effect transistor) technology with virtually no voltage loss: the drop is under 0.02 V at low current and averages just 0.1 V at higher currents. Because there is almost no drop, there is no need to raise the alternator output voltage, so charging stays accurate and batteries reach a full state of charge. A current-limited alternator energize input supplies B+ when the engine run switch is closed, so machine-sensing alternators start charging reliably.
The isolator adjusts automatically to 12 V or 24 V systems and needs no maintenance. M8 bolt connections and a compact enclosure suit marine, motorhome and off-grid installations where up to three banks share one charge source without the losses of a diode splitter.
PRODUCT DETAILS
- Charges three isolated battery banks from a single alternator or charger
- Prevents cross-discharge between service and engine start batteries
- FET technology with virtually no voltage loss, under 0.02 V at low current and about 0.1 V at higher currents
- No need to raise alternator output voltage, so batteries charge fully
- Current-limited alternator energize input powers B+ when the engine run switch is closed
- Automatically suits 12 V and 24 V systems
- M8 bolt connections, no maintenance required
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Maximum charge current | 100 A |
| Number of outputs | 3 |
| Nominal battery voltage | 12 V and 24 V |
| Technology | FET (near-zero voltage drop) |
Performance
| Maximum alternator current | 100 A |
| Voltage drop | Less than 0.02 V at low current, average 0.1 V at higher currents |
| Alternator energize input | Yes (current limited) |
Physical
| Connection | M8 bolts |
| Dimensions (h x w x d) | 65 x 120 x 200 mm |
| Weight | 1.4 kg |
Conformance
| Warranty | 5 years |
