Victron

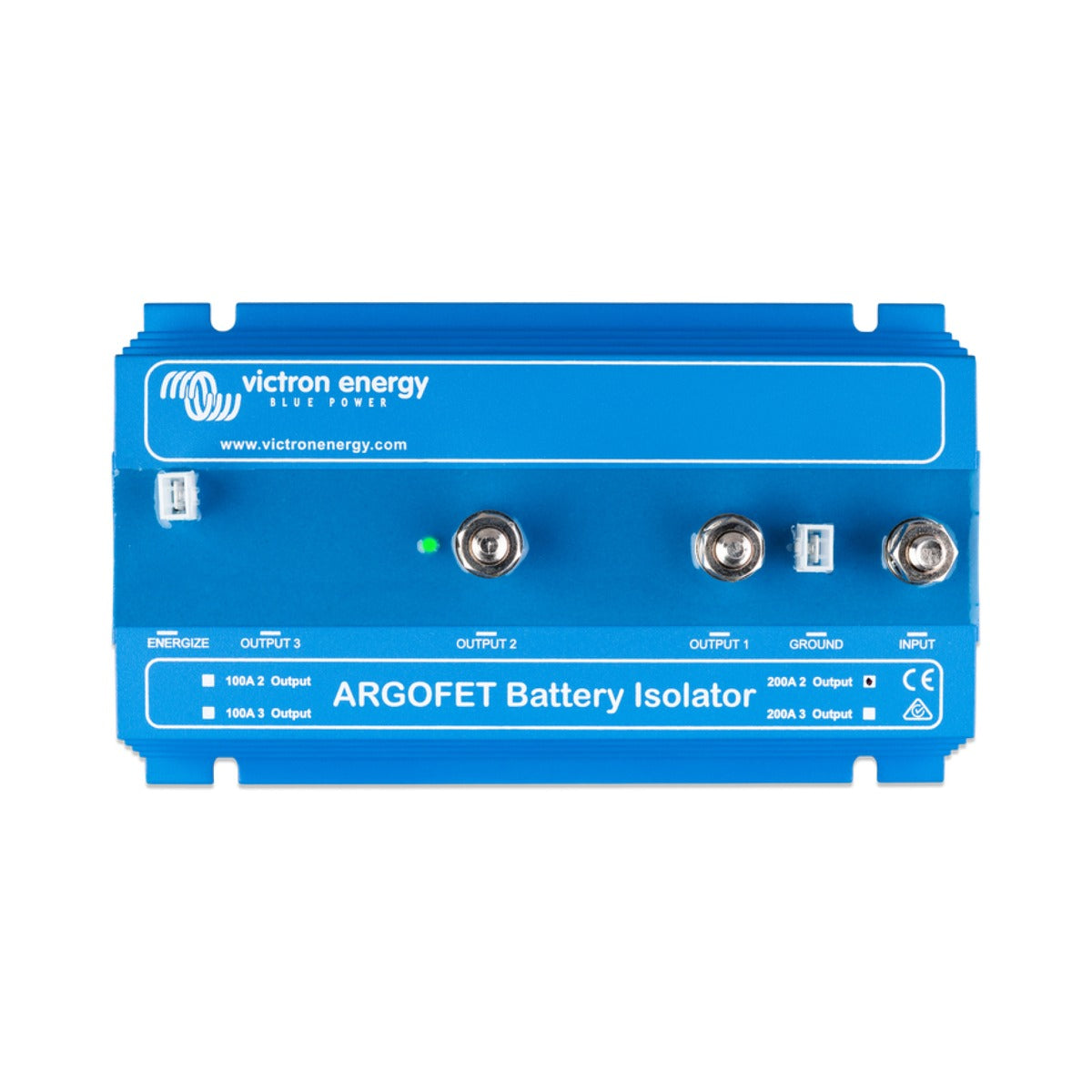

Victron Argofet Battery Isolator 200A (2 Outputs)
£138.00
/
Tax included.
ARG200201020
FET battery isolator charging two banks from one high-output alternator or charger while keeping them isolated. FET technology gives virtually no voltage loss, under 0.02 V at low current, so no alternator voltage boost is needed. Includes an energize input, for 12 V and 24 V systems, rated 200 A.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
PRODUCT DETAILS
- Charges two isolated battery banks from a single alternator or charger
- Prevents cross-discharge between service and engine start batteries
- FET technology with virtually no voltage loss, under 0.02 V at low current and about 0.1 V at higher currents
- No need to raise alternator output voltage, so batteries charge fully
- Current-limited alternator energize input powers B+ when the engine run switch is closed
- Automatically suits 12 V and 24 V systems
- M8 bolt connections, no maintenance required
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Maximum charge current | 200 A |
| Number of outputs | 2 |
| Nominal battery voltage | 12 V and 24 V |
| Technology | FET (near-zero voltage drop) |
Performance
| Maximum alternator current | 200 A |
| Voltage drop | Less than 0.02 V at low current, average 0.1 V at higher currents |
| Alternator energize input | Yes (current limited) |
Physical
| Connection | M8 bolts |
| Dimensions (h x w x d) | 65 x 120 x 200 mm |
| Weight | 1.4 kg |
Conformance
| Warranty | 5 years |
