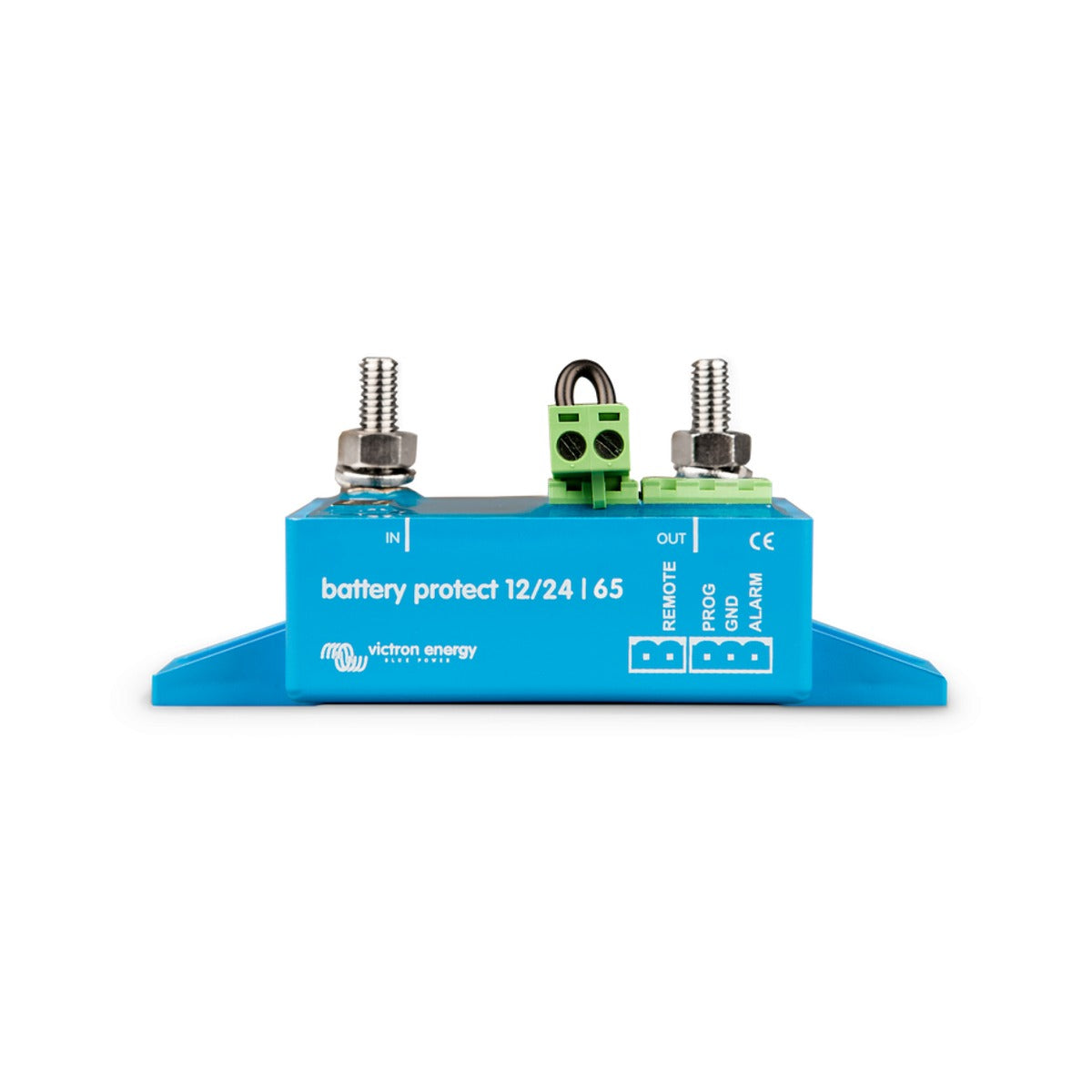

Victron BatteryProtect 12/24V 65A
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron BatteryProtect 12/24V 65A disconnects the battery from non-essential loads before it is completely discharged, protecting the bank from damaging deep discharge and preserving enough reserve to crank the engine. It suits marine, off-grid and vehicle installations where a low-voltage load disconnect is needed.
The unit detects a 12V or 24V system automatically and is set up with a seven-segment LED display, which shows the chosen engage and disengage threshold at a glance. A dedicated Li-ion setting lets the device be controlled by a VE.Bus BMS, and it can also serve as a charge interrupter between a charger and a lithium battery.
Solid-state MOSFET switching makes the BatteryProtect ignition proof, with no relays and no sparks. Delayed alarm, load-disconnect and reconnect timing means that briefly cranking the engine will not trip the protection unnecessarily.
PRODUCT DETAILS
- Disconnects non-essential loads before the battery is deeply discharged
- 65A maximum continuous load current
- 12/24V auto-ranging, detected automatically
- Seven-segment LED display for simple threshold setup
- Ignition proof: MOSFET switching, no relays or sparks
- Special Li-ion mode, controllable by a VE.Bus BMS
- Delayed alarm, load-disconnect and reconnect to ignore engine cranking
- Over-voltage protection disconnects loads above 16V (32V on 24V systems)
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Continuous current | 65 A |
| System voltage | 12/24 V (auto-ranging) |
| Bluetooth | No |
Electrical
| Maximum load current | 65 A continuous (peak 250 A for 30 seconds) |
| Cut-off / reconnect voltage | Default disengage 10.5 V or 21 V, engage 12 V or 24 V (adjustable via display) |
| Standby consumption | 1.5 mA when on, 0.6 mA when off or in low-voltage shutdown |
| Operating voltage range | 6 to 35 V |
| Over-voltage protection | Load disconnected above 16 V (32 V on 24 V systems) |
| Alarm output | Open collector, delay 12 seconds, max 50 mA (short-circuit proof) |
| Load disconnect / reconnect delay | Disconnect 90 seconds, reconnect 30 seconds |
Physical
| Dimensions | 40 x 48 x 106 mm (H x W x D) |
| Weight | 0.2 kg |
| Connection | M6 terminals |
| Protection category | Electronics IP67 (potted), connections IP00 |
Environmental
| Operating temperature range | -40 to +40°C at full load (up to 60% of nominal load at 50°C) |
