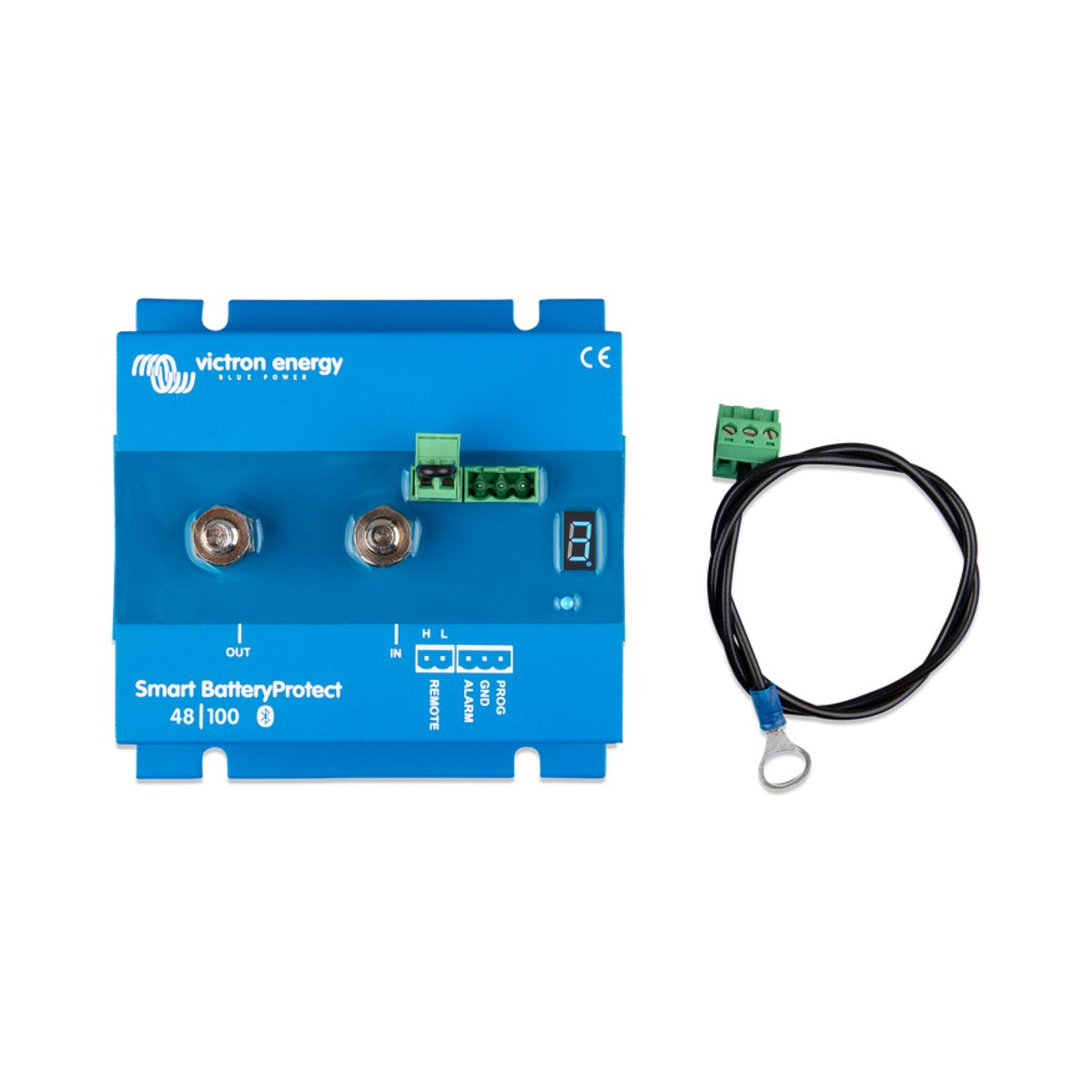

Victron BatteryProtect 48V 100A

£139.20
Tax included.
BPR048100400
Electronic low-voltage load disconnect that protects a 48V battery from deep discharge, rated at 100A continuous. Set up with a seven-segment display, ignition-proof MOSFET switching and a dedicated Li-ion mode.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Victron BatteryProtect 48V 100A disconnects the battery from non-essential loads before it is completely discharged, protecting the bank from damaging deep discharge on 48V systems. It suits larger marine, off-grid and industrial installations where a low-voltage load disconnect is needed.

The unit is set up with a seven-segment LED display, which shows the chosen engage and disengage threshold at a glance. A dedicated Li-ion setting lets the device be controlled by a VE.Bus BMS, and it can also serve as a charge interrupter between a charger and a lithium battery.

Solid-state MOSFET switching makes the BatteryProtect ignition proof, with no relays and no sparks. Delayed alarm, load-disconnect and reconnect timing avoids nuisance tripping during brief voltage dips.

PRODUCT DETAILS

  • Disconnects non-essential loads before the battery is deeply discharged
  • 100A maximum continuous load current on 48V systems
  • Seven-segment LED display for simple threshold setup
  • Ignition proof: MOSFET switching, no relays or sparks
  • Special Li-ion mode, controllable by a VE.Bus BMS
  • Delayed alarm, load-disconnect and reconnect to avoid nuisance tripping
  • Over-voltage protection disconnects loads above 64V

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Key specifications

Continuous current100 A
System voltage48 V
BluetoothNo

Electrical

Maximum load current100 A continuous (peak 250 A)
Cut-off / reconnect voltageDefault disengage 42 V, engage 48 V (adjustable via display)
Standby consumption2 mA when on, 1.5 mA when off or in low-voltage shutdown
Operating voltage range24 to 64 V
Over-voltage protectionLoad disconnected above 64 V
Alarm outputOpen collector, delay 12 seconds, max 50 mA (short-circuit proof)
Load disconnect / reconnect delayDisconnect 90 seconds, reconnect 30 seconds

Physical

Dimensions62 x 123 x 120 mm (H x W x D)
Weight0.8 kg
ConnectionM8 terminals
Protection categoryElectronics IP67 (potted), connections IP00

Environmental

Operating temperature range-40 to +40°C at full load (up to 60% of nominal load at 50°C)

No videos available for this product.

What does the BatteryProtect do?
It automatically disconnects non-essential loads when the 48V battery voltage drops to a preset level, preventing deep discharge that would damage the battery.
Does this model have Bluetooth?
No. This is the standard 48V BatteryProtect, set up with a seven-segment LED display. For Bluetooth programming via the VictronConnect app, choose the Smart BatteryProtect 48V.
Can I use it with lithium batteries?
Yes. It has a dedicated Li-ion setting and can be controlled by a VE.Bus BMS. It can also act as a charge interrupter between a charger and a lithium battery.
What is the operating voltage range?
24 to 64 V. Loads are also disconnected by over-voltage protection if the DC voltage exceeds 64 V.
Can it handle current from a charger as well as to a load?
No. The BatteryProtect is a uni-directional device and is not designed for reverse currents from charging sources. Current flows from the battery terminal to the load terminal only.
