Victron Blue Smart IP22 Charger 12/15 (120V)
£146.40
/
Tax included.
BPC121545102
The Victron Blue Smart IP22 Charger 12/15 is a 12 V, 15 A single-output battery charger with built-in Bluetooth, VE.Smart Networking and up to 93% efficiency. This 120 V version is fitted with a US NEMA 5-15 plug.
✓
Available for collection or delivery in ~2 days
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

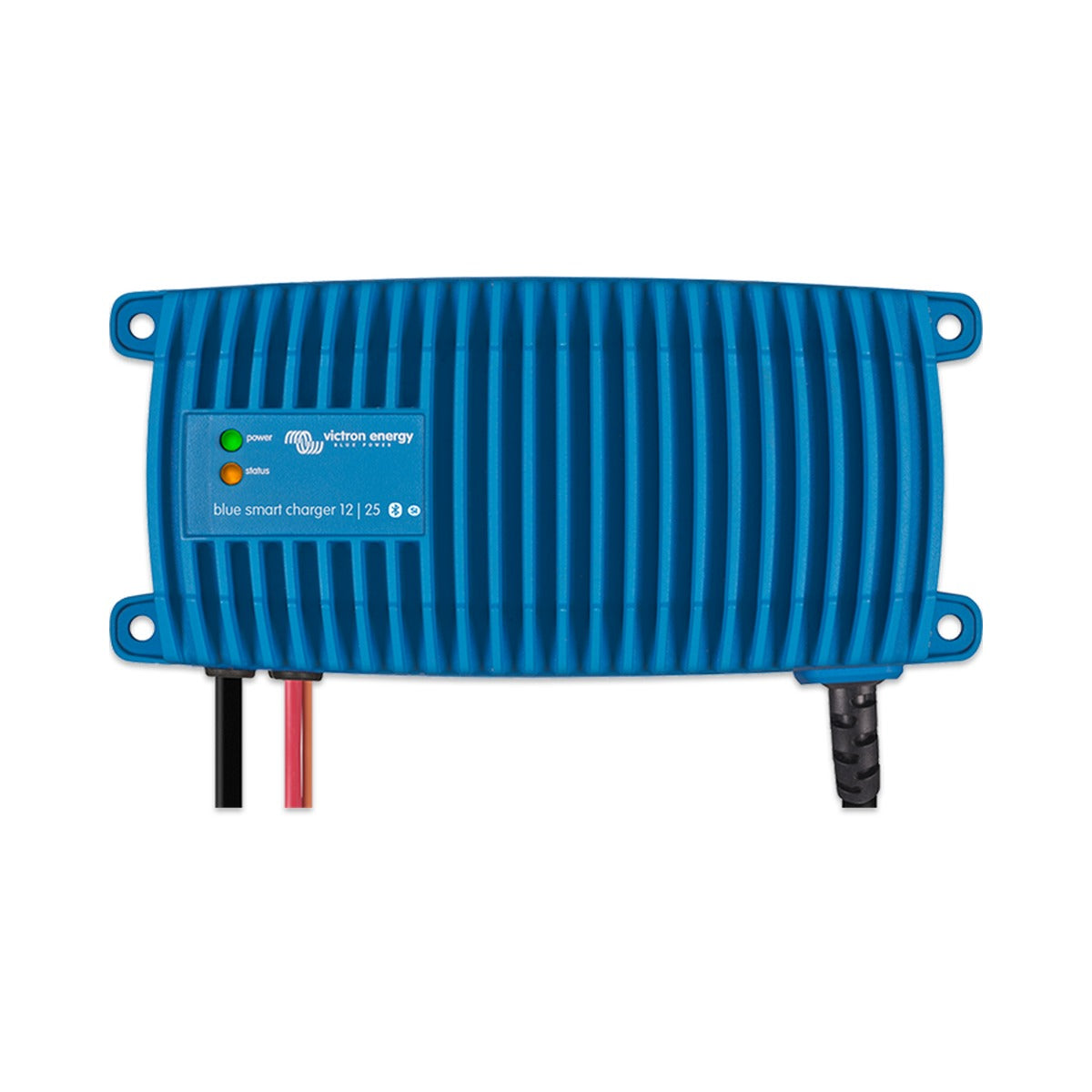

The Blue Smart IP22 Charger is a professional battery charger with built-in Bluetooth, suited to the workshop and to vehicles such as cars, motorbikes, boats and camper vans. A microprocessor-controlled adaptive 6-stage charge algorithm optimises every cycle, and the full algorithm can be reprogrammed in the free VictronConnect app once Expert mode is enabled.
Bluetooth lets you read voltage and current, change settings and update firmware wirelessly. VE.Smart Networking links the charger to a Smart Battery Sense, BMV-712 or SmartShunt for temperature and voltage compensated charging, and lets up to ten chargers synchronise to charge a battery bank as one. Storage mode reduces maintenance when a battery is left connected, the charger recovers deeply discharged batteries from zero volts, and a NIGHT or LOW mode runs it silently at reduced current.
This 12 V, 15 A single-output model is the 120 V variant, supplied with a US NEMA 5-15 plug and rated for a 100-130 VAC supply. With efficiency up to 93% and under 1 W consumption once charged, it wastes far less energy as heat than conventional chargers.
PRODUCT DETAILS
- 12 V, 15 A single-output battery charger
- Built-in Bluetooth with the free VictronConnect app
- VE.Smart Networking with synchronised parallel charging
- Fully programmable 6-stage adaptive charge algorithm
- Charges lead-acid and lithium-ion (LiFePO4) batteries
- NIGHT and LOW modes for silent, reduced-current charging
- Can be used as a DC power supply; recovers fully discharged batteries
- 120 V version with US NEMA 5-15 plug; up to 93% efficiency
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Battery voltage | 12 V |
| Charge current | 15 A |
| Number of outputs | 1 |
| Maximum efficiency | 93 % |
Charging
| Charge algorithm | 6-stage adaptive (test, bulk, absorption, recondition, float, storage); fully programmable |
| Low current mode | 7.5 A (NIGHT or LOW mode, max 50 % of nominal) |
| Charge voltage 'absorption' | Normal 14.4 V; High 14.7 V; Li-ion 14.2 V |
| Charge voltage 'float' | Normal 13.8 V; High 13.8 V; Li-ion 13.5 V |
| Charge voltage 'storage' | Normal 13.2 V; High 13.2 V; Li-ion 13.5 V |
Input
| AC input voltage range | 100-130 VAC (nominal 110-120 VAC) |
| Input frequency | 45-65 Hz |
| No-load power consumption | 0.5 W |
Connectivity & control
| Bluetooth | Built-in (VictronConnect); VE.Smart Network |
| Battery temperature sensor | Via VE.Smart Network (Smart Battery Sense, BMV-712 or SmartShunt) |
| Battery type selection | Normal, High, Li-ion (and fully programmable in Expert mode) |
| Battery voltage sense | Via VE.Smart Network |
Protection
| Protection | Battery reverse polarity (fuse), output short circuit, over temperature |
Environmental
| Operating temperature | -20 to +50 (full rated output up to 40) |
| Humidity | Max 98 % (non-condensing) |
Physical
| Colour | Blue (RAL 5012) |
| Material | Aluminium |
| Protection category | IP22 |
| Terminals | Battery: screw terminals 16 mm2 / AWG6; AC: 1.8 m cable with US NEMA 5-15 plug |
| Weight | 1.3 kg |
| Dimensions (h x w x d) | 245 x 108 x 65 mm |
Conformance
| Safety | UL 1236, CSA C22.2, EN 60335-1, EN 60335-2-29 |
| Emission / Immunity | EN 55014-1, EN 55014-2, EN 61000-6-1/-6-2/-6-3, EN 61000-3-2/-3-3; Automotive ECE R10-5 |
Which batteries can this charger be used with?
It charges 12 V lead-acid batteries (flooded, AGM and gel) with a 6-stage adaptive algorithm, and lithium-ion (LiFePO4) batteries with a bulk, absorption and float algorithm. The algorithm is fully programmable in the VictronConnect app.
What is VE.Smart Networking?
VE.Smart Networking is a wireless Bluetooth link between Victron devices. Adding a Smart Battery Sense, BMV-712 or SmartShunt lets the charger use measured battery voltage and temperature, and up to ten chargers can be synchronised to charge one battery bank together.
What do the NIGHT and LOW modes do?
In NIGHT or LOW mode the output current is reduced to a maximum of 50 % of nominal and the charger runs silently. NIGHT mode ends automatically after 8 hours; LOW mode is ended manually.
Can it be used as a power supply?
Yes. The Blue Smart IP22 can run as a DC power supply, selectable in the VictronConnect app, to power equipment with or without a battery connected.
What AC supply does this version need?
This is the 120 V version. It accepts a 100-130 VAC, 45-65 Hz supply and is fitted with a 1.8 m cable and a US NEMA 5-15 plug.
