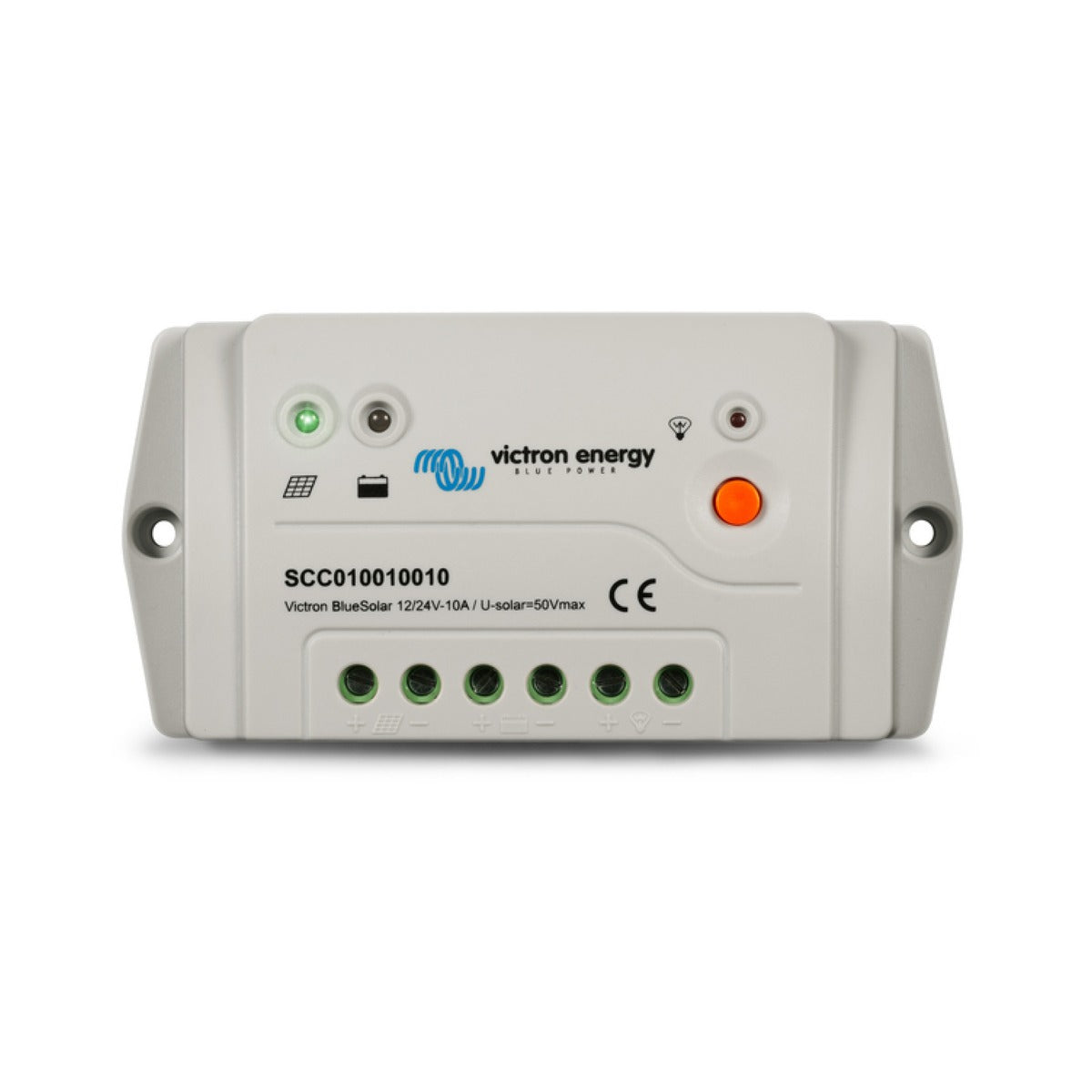

Victron BlueSolar PWM-Pro 12/24V 10A

£31.20
Tax included.
SCC010010010
A 12/24V PWM solar charge controller rated at 10A with automatic system voltage detection. Fully programmable three stage charging plus a load output with low voltage disconnect and lighting control. A cost-effective regulator for small solar arrays.
✓ Available for collection or delivery in ~2 days

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Victron BlueSolar PWM-Pro is an affordable pulse width modulation (PWM) solar charge controller for 12V and 24V systems. It automatically detects the system voltage on first connection and regulates solar charging through a fully programmable three stage algorithm, keeping flooded, GEL or AGM batteries in good health on boats, campervans and off-grid installations.

This 10A model handles a single panel or a small array and pairs a load output with an adjustable low voltage disconnect to guard the battery against deep discharge. A programmable lighting control function makes it well suited to automatic dusk-to-dawn lighting on tender docks, pontoons and remote cabins.

All settings can be changed from a computer using the free Victron software or through the dedicated BlueSolar Pro remote panel, and an optional external temperature sensor sharpens charge accuracy as conditions change.

PRODUCT DETAILS

  • PWM charge controller for 12V or 24V systems
  • Automatic system voltage detection on connection
  • 10A rated charge current
  • Fully programmable three stage charging (bulk, absorption, float)
  • Load output with low voltage disconnect and lighting control
  • Programmable via free software or the BlueSolar Pro remote panel
  • Optional external battery temperature sensor
  • Protected against reverse polarity, short circuit and over temperature

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Key specifications

Rated charge current10 A
System voltage12/24 V (automatic detection)
Controller typePWM

Electrical

Charge stagesThree stage (bulk, absorption, float), fully programmable
Load outputManual control plus low voltage disconnect

Physical

Dimensions138 x 70 x 37 mm
Protection categoryIP30

No videos available for this product.

What is the difference between a PWM and an MPPT controller?
A PWM controller connects the panel more or less directly to the battery, which is simple and economical but works best when the panel voltage closely matches the battery voltage. An MPPT controller actively converts excess panel voltage into extra charge current and typically harvests more energy, especially in cold or low-light conditions. For small 12V or 24V systems on a budget, the BlueSolar PWM-Pro is a cost-effective choice.
Does it work with both 12V and 24V batteries?
Yes. The controller detects the system voltage automatically the first time it is connected and configures itself for 12V or 24V operation.
What size solar panel can I use?
For a 12V battery use a 36 cell solar panel, and for a 24V battery use a 72 cell panel. The maximum solar voltage is 28V on a 12V system and 55V on a 24V system.
Can I connect loads directly to the controller?
Yes. The load output has an adjustable low voltage disconnect that protects the battery from deep discharge, and it can also be programmed for automatic lighting control.
Can I add a temperature sensor?
Yes. An optional external battery temperature sensor (article SCC940100100) improves charge accuracy by applying temperature compensation.
