Victron
Victron Busbar 150A 6-Pole (with Cover)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

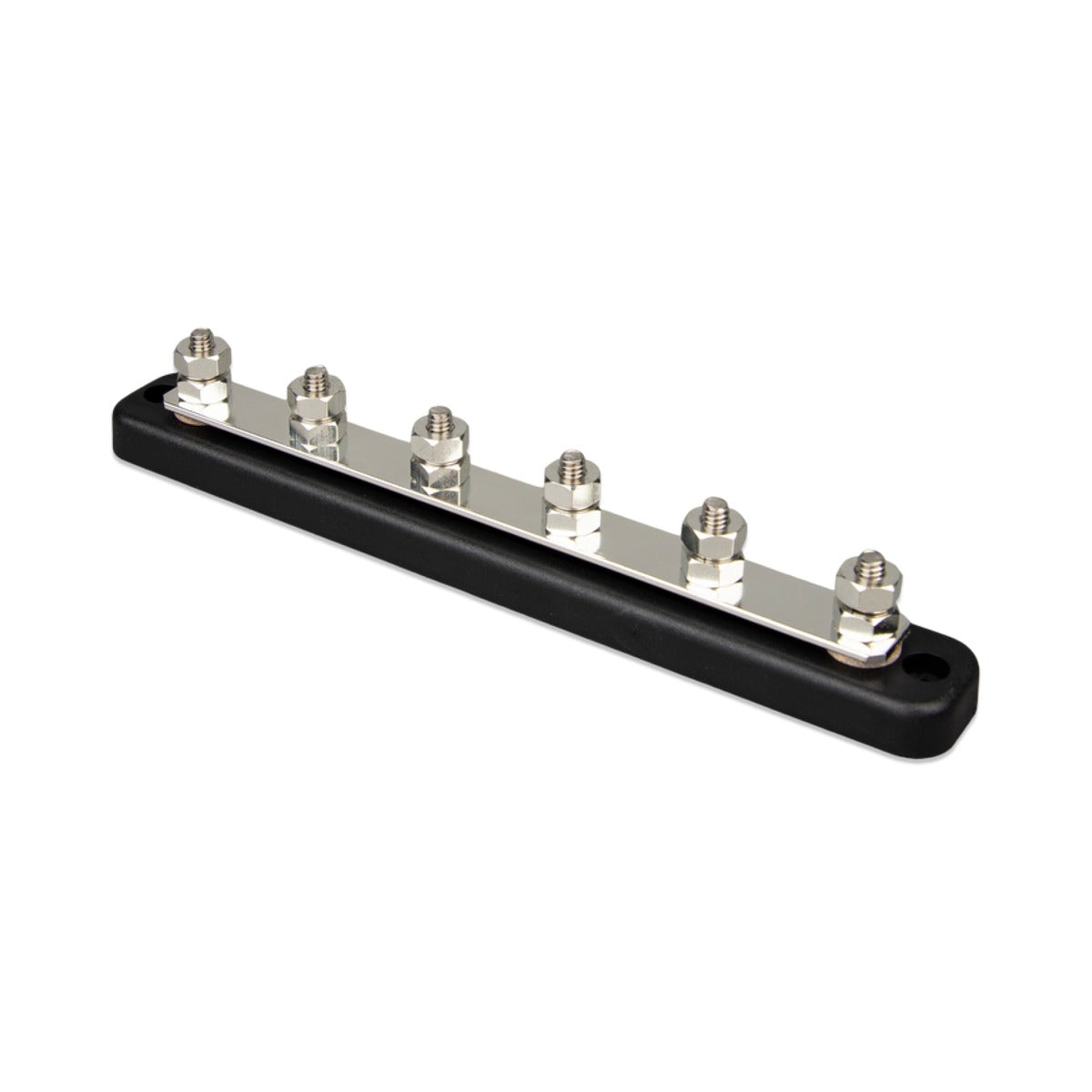

This Victron busbar provides a single common point for connecting several DC loads or sources to the battery. Rated for a continuous 150 A at up to 70 VDC, it carries six heavy current stud terminals, making it a tidy way to bring a larger positive or negative bank of cables together at one connection.
The busbar strip is tin-plated copper (1.4 x 18 mm) for a low resistance path, mounted on a black ABS base rated UL 94 V-0. A clear polycarbonate protective cover is supplied to guard against accidental short circuits.
PRODUCT DETAILS
- Common DC distribution point for connecting multiple loads and sources
- Continuous current rating of 150 A at up to 70 VDC
- Six 1/4 inch (6.35 mm) stainless steel stud terminals
- Low resistance tin-plated copper busbar strip (1.4 x 18 mm)
- Black ABS base rated UL 94 V-0
- Clear polycarbonate protective cover included
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Continuous current | 150 A |
| Number of connections | 6 |
| Number of poles | 6-pole |
Electrical
| Continuous current rating | 150 A at 70 VDC |
Physical
| Stud size | 1/4 inch (6.35 mm), stainless steel, torque 7 Nm |
| Cover included | Yes, clear polycarbonate |
| Dimensions | 45 x 231.7 x 31.8 mm (H x W x D, with cover) |
| Material | Tin-plated copper strip, ABS base |
