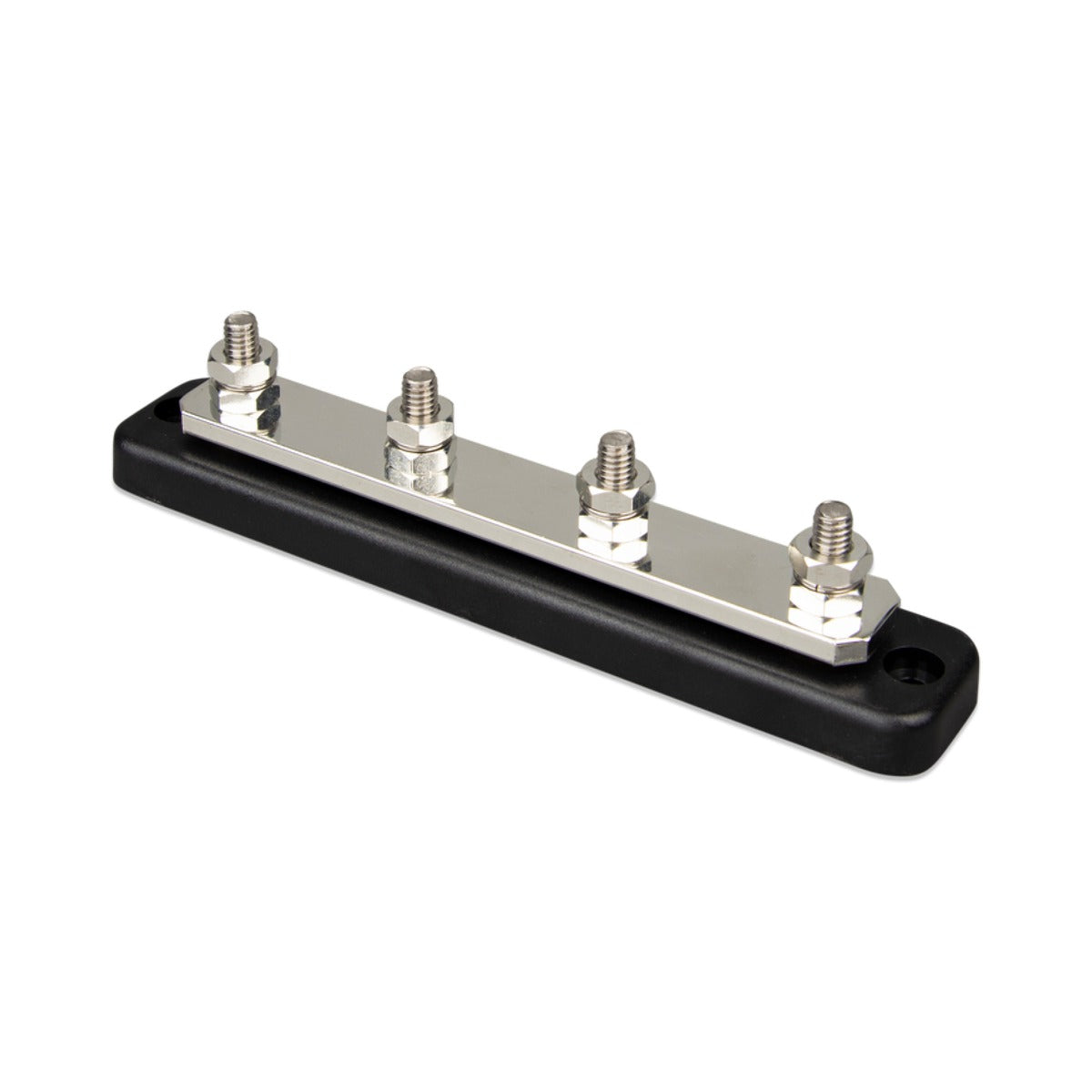

Victron Busbar 250A 4-Pole (with Cover)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
This Victron busbar provides a single common point for connecting several DC loads or sources to the battery. Rated for a continuous 250 A at up to 70 VDC, it carries four heavy current stud terminals, bringing a positive or negative bank of cables together at one low resistance connection.
The busbar strip is tin-plated copper (5 x 24 mm), mounted on a black ABS base rated UL 94 V-0, with a black ABS protective cover supplied to guard against accidental short circuits.
PRODUCT DETAILS
- Common DC distribution point for connecting multiple loads and sources
- Continuous current rating of 250 A at up to 70 VDC
- Four 5/16 inch (8 mm) stainless steel stud terminals
- Low resistance tin-plated copper busbar strip (5 x 24 mm)
- Black ABS base rated UL 94 V-0
- Protective cover included
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Continuous current | 250 A |
| Number of connections | 4 |
| Number of poles | 4-pole |
Electrical
| Continuous current rating | 250 A at 70 VDC |
Physical
| Stud size | 5/16 inch (8 mm), stainless steel, torque 13 Nm |
| Cover included | Yes, black ABS |
| Dimensions | 48 x 237 x 70 mm (H x W x D, with cover) |
| Material | Tin-plated copper strip, ABS base |
