Victron BusBar 5-Way 500A (for MEGA Fuse Holders)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

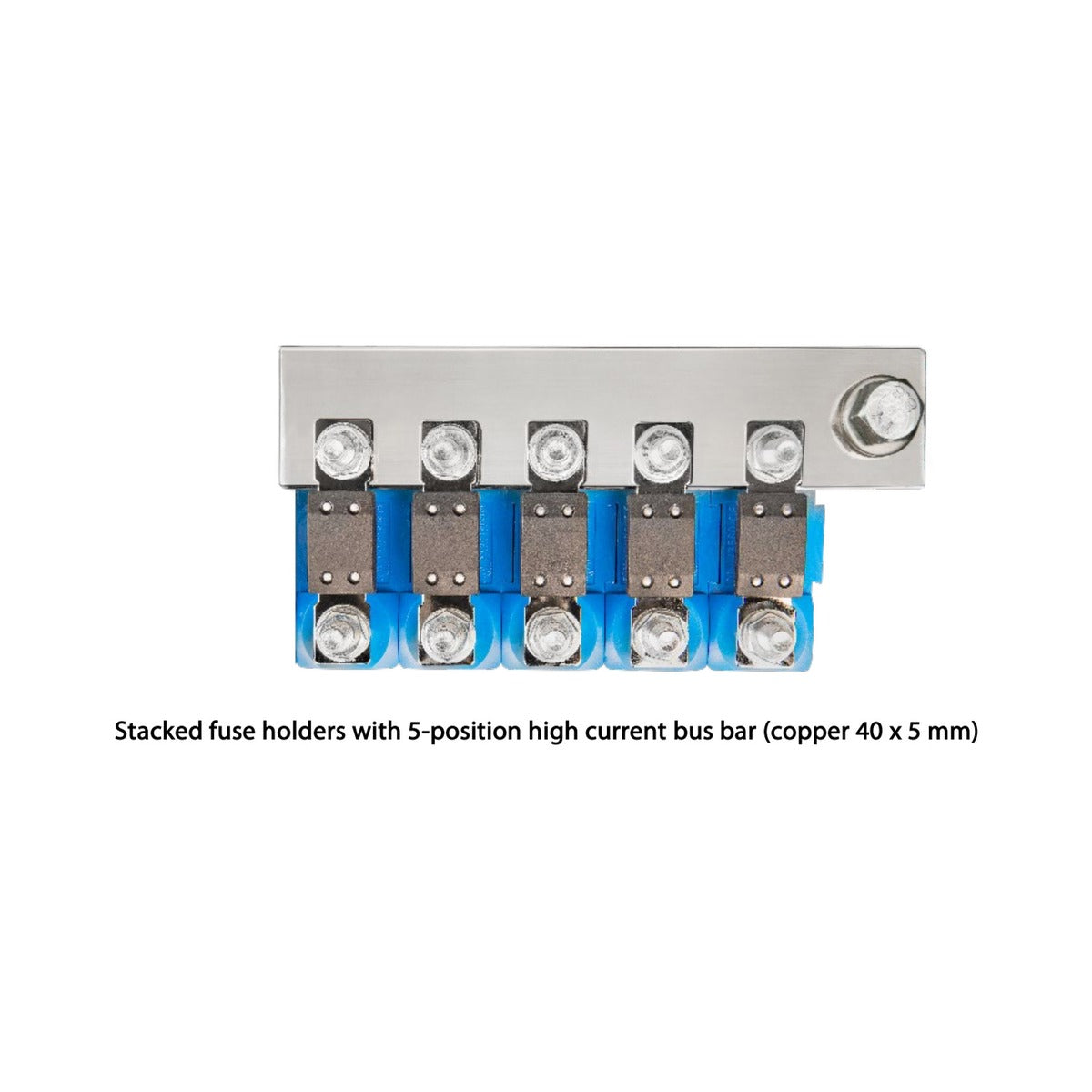

The Victron BusBar 5 is a high current distribution busbar designed to combine up to five modular MEGA fuse holders (CIP100200100) onto a single connection point. It is the recommended way to protect and parallel several high power loads or sources, such as a bank of Multi or Quattro inverter/chargers, from a common battery connection.
Tin-plated copper construction gives a low resistance path rated for a continuous 500 A, while the single M10 input stud accepts a heavy battery cable. The five fuse-holder positions clip on in line, keeping a large DC system tidy and each branch individually fused.
PRODUCT DETAILS
- Combines up to five modular MEGA fuse holders (CIP100200100) on one busbar
- Continuous current rating of 500 A
- Single M10 input stud for the main battery cable
- Low resistance tin-plated copper construction
- Keeps large DC systems tidy with each branch individually fused
- Ideal for paralleling multiple high power Multi or Quattro units
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Continuous current | 500 A |
| Number of connections | 5 fuse-holder positions plus 1 input |
| Number of poles | 5-way |
Electrical
| Continuous current rating | 500 A |
Physical
| Stud size | M10 input stud |
| Cover included | No |
| Material | Tin-plated copper |
