Victron
Victron BusBar 6-Way 1500A (for MEGA Fuse Holders)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

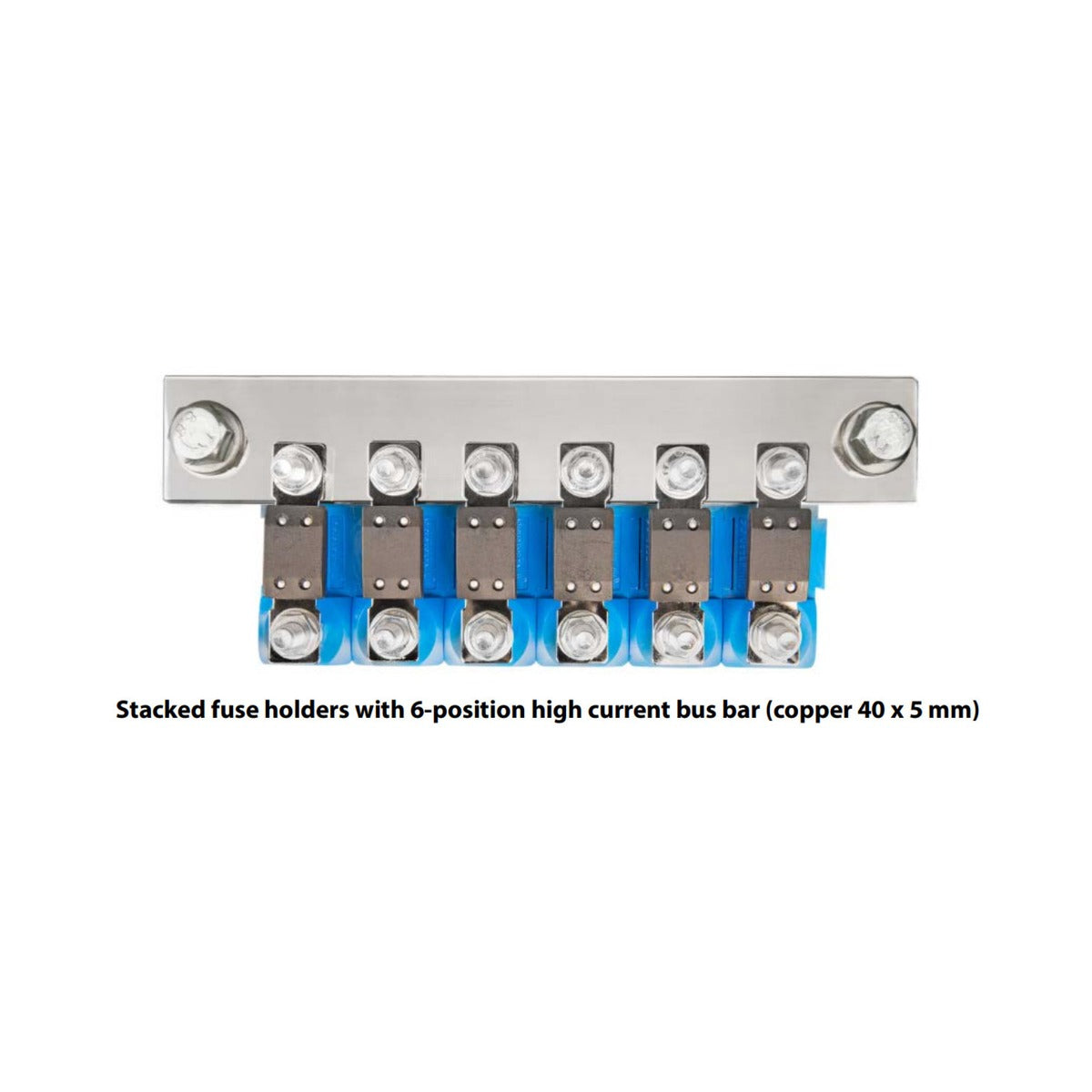

The Victron BusBar 6 is a high current distribution busbar that combines up to six modular MEGA fuse holders (CIP100200100) on a single busbar. It is the recommended solution for protecting and paralleling several high power inverter/chargers, such as a bank of Multi or Quattro units, from a common battery connection.
Built from low resistance tin-plated copper and rated for a continuous 1500 A, it provides two M10 input studs to share a very high input current (up to 2000 A) across heavy battery cables. The six in-line fuse-holder positions keep large DC systems organised, with every branch individually fused.
PRODUCT DETAILS
- Combines up to six modular MEGA fuse holders (CIP100200100) on one busbar
- Continuous current rating of 1500 A
- Two M10 input studs to share very high input current (up to 2000 A)
- Low resistance tin-plated copper construction
- Keeps large DC systems tidy with each branch individually fused
- Ideal for paralleling large banks of Multi or Quattro units
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Continuous current | 1500 A |
| Number of connections | 6 fuse-holder positions plus 2 inputs |
| Number of poles | 6-way |
Electrical
| Continuous current rating | 1500 A |
Physical
| Stud size | 2x M10 input studs |
| Cover included | No |
| Material | Tin-plated copper |
