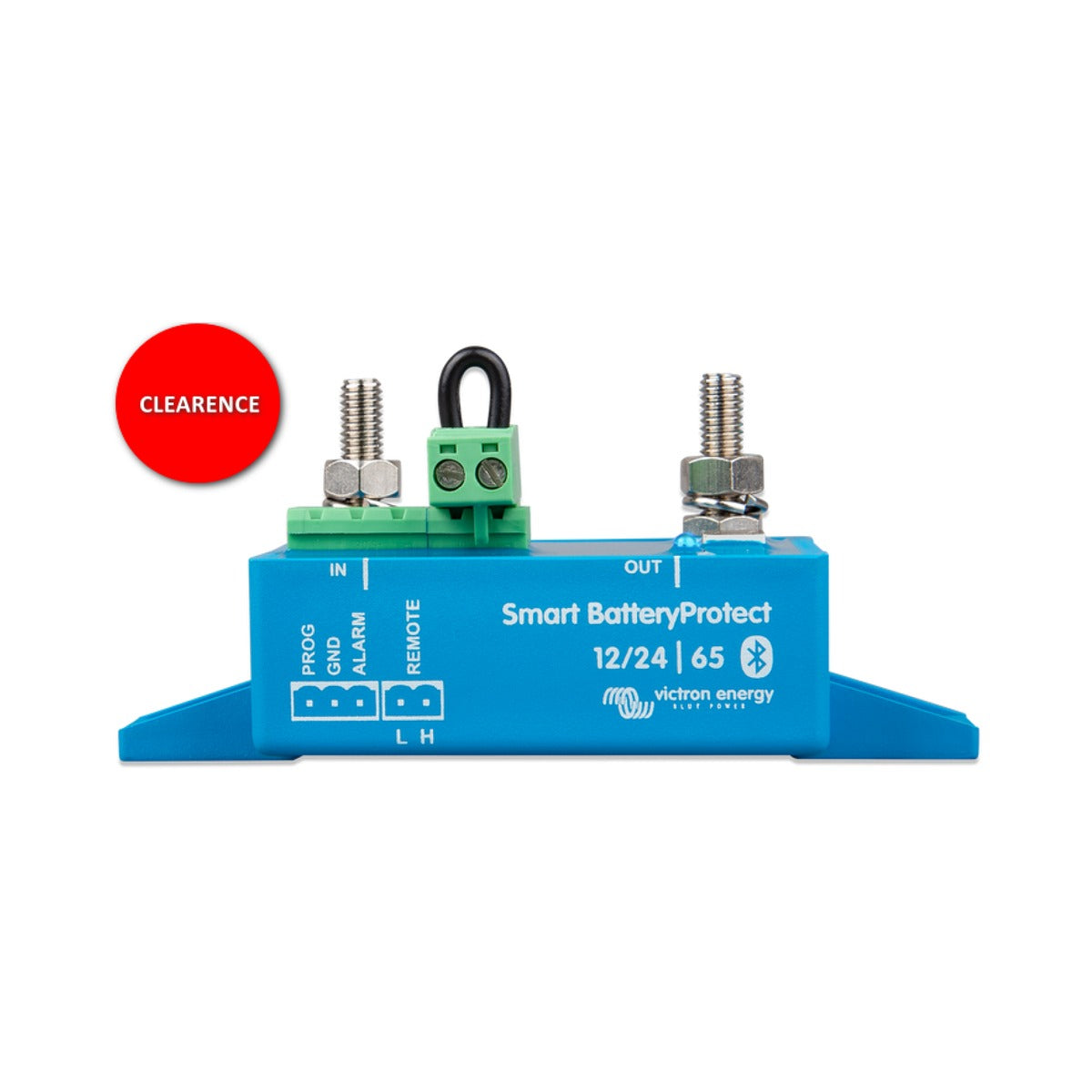

Victron Smart BatteryProtect 12/24V 65A (Clearance)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Smart BatteryProtect 12/24V 65A disconnects the battery from non-essential loads before it is completely discharged, protecting the bank from damaging deep discharge and preserving enough reserve to crank the engine. It can also double as a system on/off switch, and suits marine, off-grid and vehicle installations where a programmable low-voltage load disconnect is needed. This unit is offered from clearance stock at a reduced price; it is the same product as the standard Smart BatteryProtect 12/24V 65A.
Built-in Bluetooth lets you set any required engage and disengage levels from the VictronConnect app, or you can select one of nine predefined levels with the programming pin. Instant Readout shows key status, warnings and alarms in the app without pairing, and Bluetooth can be disabled if preferred. A dedicated Li-ion mode allows control by a VE.Bus BMS, and the unit can act as a charge interrupter ahead of a lithium battery.
Solid-state MOSFET switching makes the Smart BatteryProtect ignition proof, with no relays and no sparks. Delayed alarm, load-disconnect and reconnect timing means that briefly cranking the engine will not trip the protection unnecessarily.
PRODUCT DETAILS
- Clearance stock, same as the standard Smart BatteryProtect 12/24V 65A
- Disconnects non-essential loads before the battery is deeply discharged
- 65A maximum continuous load current
- Bluetooth: set any engage/disengage level via VictronConnect (can be disabled)
- Instant Readout of status, warnings and alarms without pairing
- 12/24V auto-ranging, detected automatically
- Doubles as a system on/off switch
- Ignition proof: MOSFET switching, no relays or sparks
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Continuous current | 65 A |
| System voltage | 12/24 V (auto-ranging) |
| Bluetooth | Yes (VictronConnect, can be disabled) |
Electrical
| Maximum load current | 65 A continuous (peak 250 A for 30 seconds) |
| Cut-off / reconnect voltage | Default disengage 10.5 V or 21 V, engage 12 V or 24 V (programmable) |
| Standby consumption | BLE on: 1.4 mA when on, 0.9 mA when off/shutdown. BLE off: 1.2 mA / 0.7 mA |
| Operating voltage range | 6 to 35 V |
| Over-voltage protection | Load disconnected above 16.3 V (32.6 V on 24 V systems) |
| Alarm output | Open collector, delay 12 seconds, max 50 mA (short-circuit proof) |
| Load disconnect / reconnect delay | Disconnect 90 seconds, reconnect 30 seconds |
Physical
| Dimensions | 48 x 55 x 106 mm (H x W x D) |
| Weight | 0.2 kg |
| Connection | M6 terminals (torque 5 Nm) |
| Protection category | Electronics IP67 (potted), connections IP00 |
Environmental
| Operating temperature range | -40 to +40°C at full load (up to 60% of nominal load at 50°C) |
