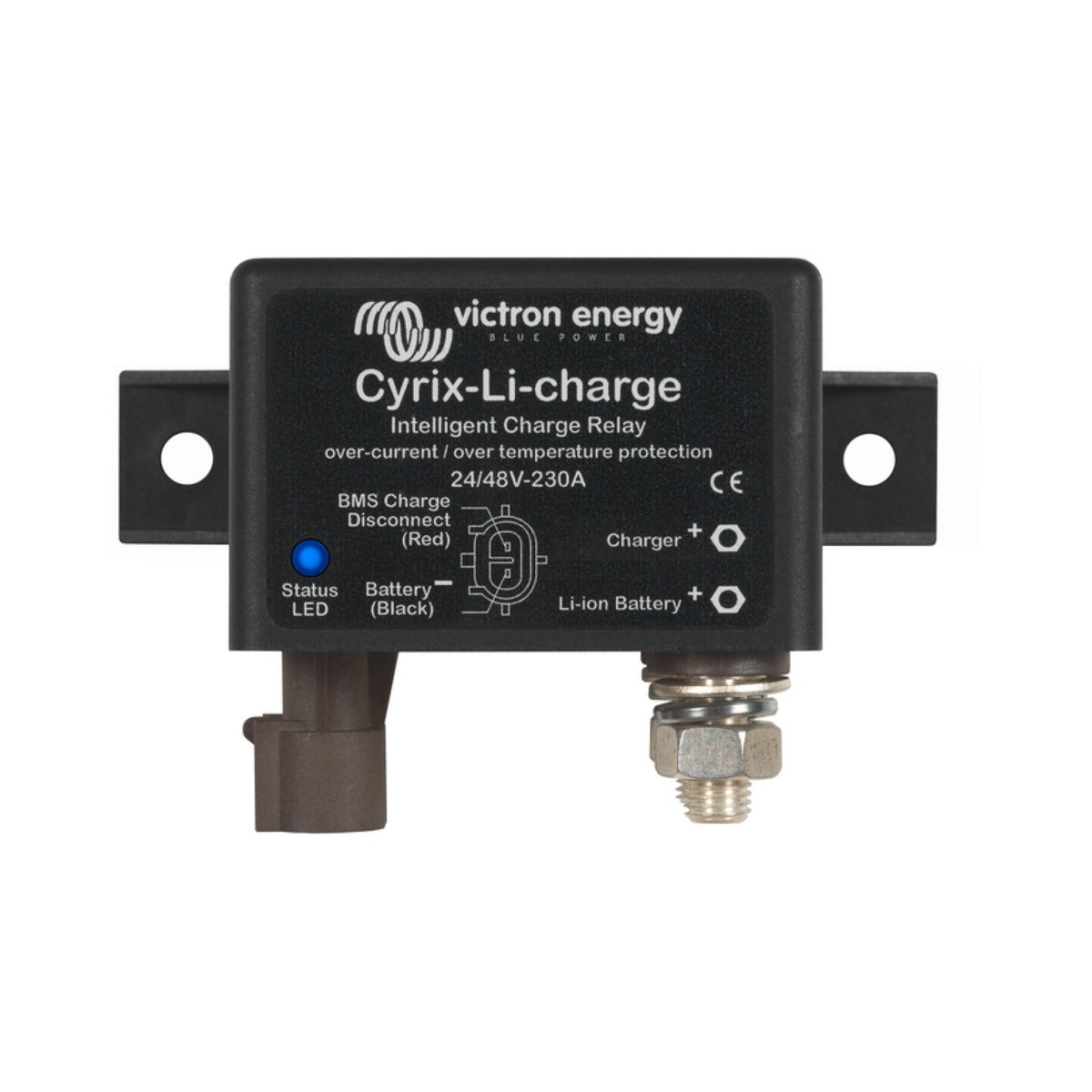

Victron Cyrix-Li-charge 24/48V 230A
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Cyrix-Li-charge 24/48-230 is a microprocessor controlled charge relay for higher voltage lithium systems, fitted between a battery charger and a Victron LiFePO4 battery. It allows charging only when the Victron VE.Bus BMS permits it, and disconnects the charger the instant the BMS signals a cell over voltage or over temperature, protecting the lithium cells.
Rated at 230 A continuous at 24 V and 80 A at 48 V, it connects the charger with a three second delay when the BMS charge disconnect output is high, when it senses 26.0 V (52.0 V on 48 V) or more on the charger terminal, and when it detects sufficient voltage on the battery terminal. A bicolour status LED reports the relay state and a one metre control cable is supplied. Once engaged it briefly opens after an hour to re check that the charger is still enabled, and it reconnects automatically when the charger voltage returns.
The Cyrix-Li-charge is used where a charging source cannot be controlled directly by the BMS, such as a mains charger, alternator or solar charger. This model is intended for 24 V and 48 V systems and must be used with a Victron VE.Bus BMS (or miniBMS) and Victron lithium batteries.
PRODUCT DETAILS
- Charge relay for lithium systems, 230 A at 24 V (80 A at 48 V)
- Designed for 24 V and 48 V systems
- Fitted between a charger and a Victron LiFePO4 battery
- Controlled by a Victron VE.Bus BMS for full lithium protection
- Connects the charger with a 3 second delay once conditions are met
- Disengages immediately on cell over voltage or over temperature
- Rechecks charger status after 1 hour and reconnects automatically
- LED status indication and one metre control cable included
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Continuous current | 230 A at 24 V (80 A at 48 V) |
| System voltage | 24/48 V |
| Technology | Relay (microprocessor-controlled) |
| Breaking capacity at 48 V | 80 A |
Operation
| Function | Charge relay between charger and LiFePO4 battery |
| Control input | Engages when high (approx. battery voltage), disengages when free floating or pulled low |
| Connect condition | BMS charge output high, 26.0 V / 52.0 V on charger terminal and sufficient voltage on battery terminal, 3 second delay |
| Disconnect condition | Immediate on cell over voltage / over temperature; rechecks after 1 hour |
| LED status indication | Yes |
General
| Current consumption when open | < 4 mA |
| Control cable included | Yes, length 1 m |
Enclosure
| Protection category | IP54 |
| Dimensions (H x W x D) | 65 x 100 x 50 mm |
| Weight | 0.27 kg |
