Description

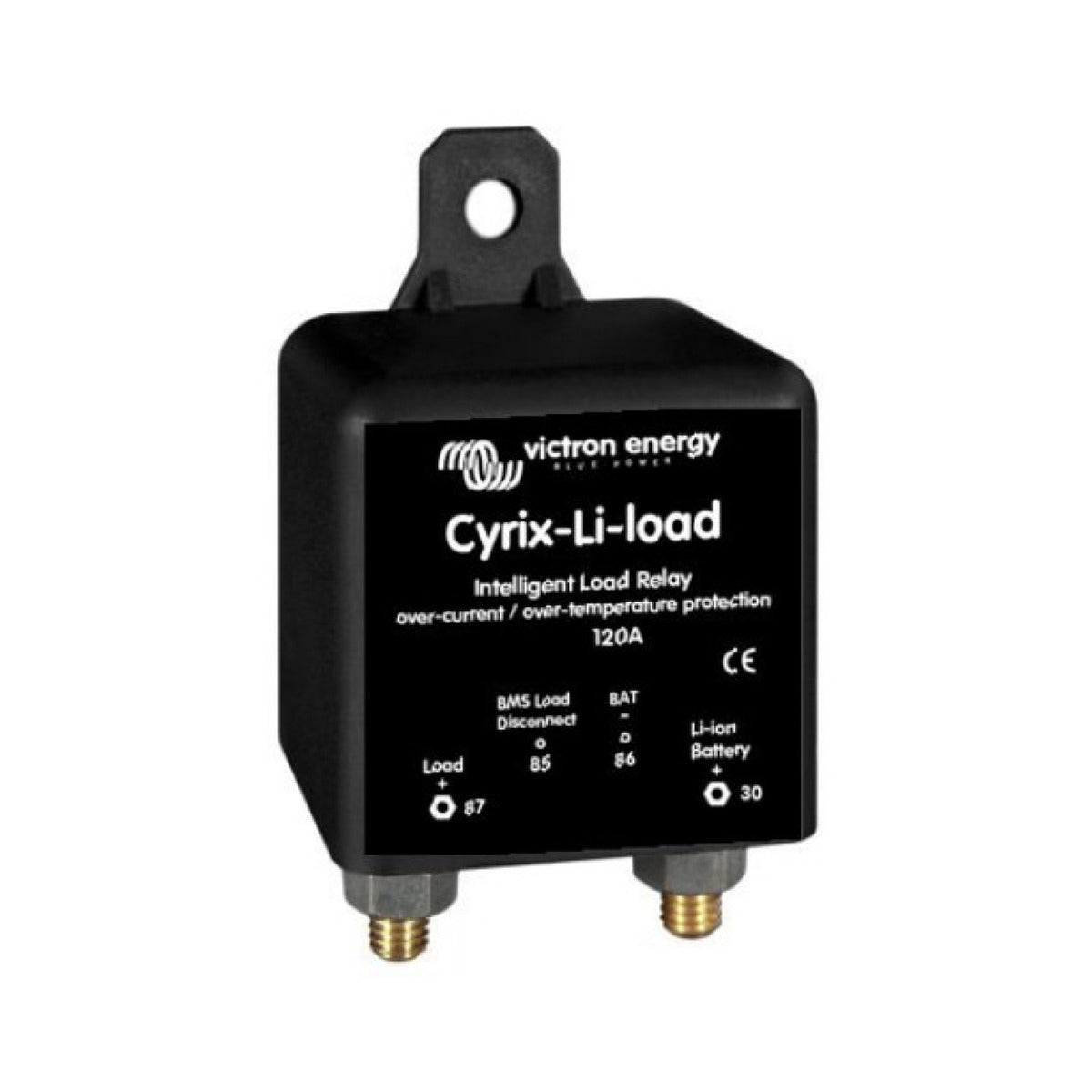

The Victron Cyrix-Li-load 24/48-120 is a microprocessor controlled load relay for higher voltage lithium systems, fitted between a Victron LiFePO4 battery and a load. Under the control of a Victron VE.Bus BMS it disconnects the load before the lithium cells can be driven into a damaging under voltage condition, then reconnects automatically once the battery has recovered.
Rated at 120 A continuous at 24 V and 40 A at 48 V, it disengages the moment its control input becomes free floating, which the BMS does on an imminent cell under voltage. If the battery voltage then recovers, the relay reengages after 30 seconds. After three attempts it stays open until the battery voltage has risen above 26 V (52 V on 48 V) for at least 30 seconds, confirming the battery is truly being recharged.
The Cyrix-Li-load is used where a load cannot be switched directly by the BMS. This model is intended for 24 V and 48 V systems and must be used with a Victron VE.Bus BMS (or miniBMS) and Victron lithium batteries. A BatteryProtect is an alternative where very low standby consumption is required.
