Description

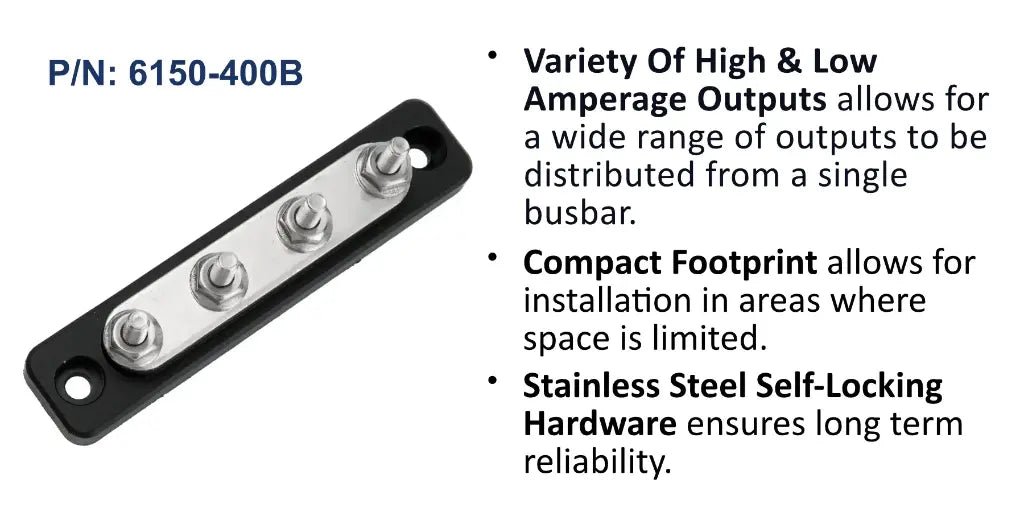

The EGIS 150A four-stud common busbar ties heavier cables together through four 1/4-20 studs rated to a maximum of 48Vdc, providing an all-stud alternative for higher-current links. The tin-plated copper conductor delivers superior electrical performance with minimal voltage drop.
Stainless steel self-locking hardware ensures long-term reliability under vibration and #10 (M5) mounting holes allow secure fixing to a rigid surface. An optional transparent cover (sold separately) is available for shock protection.
PRODUCT DETAILS
- 150A rated, 48Vdc maximum
- Four 1/4-20 studs for cable-to-cable links
- Tin-plated copper busbar for minimal voltage drop
- Stainless steel self-locking hardware
- #10 (M5) mounting holes
- Optional transparent cover available
- CE marked
- 150A four-stud common busbar
- Stainless steel terminal hardware
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Current Rating | 150A |
| Maximum Voltage | 48Vdc |
Mechanical
| Studs | 4 x 1/4-20 |
| Stud Torque | 60 in-lbs (6.7 N-m) |
| Mounting Holes | #10 (M5) |
| Busbar Material | Tin-plated copper |
General
| CE Marked | Yes |
No videos available for this product.
What is this busbar rated for?
It is rated for 150A continuous at a maximum of 48Vdc.
How many studs does it have?
Four 1/4-20 studs for cable-to-cable connections.
Does it include a cover?
No, this version is supplied without a cover. An optional cover (6152) fits it.
What torque should the studs be set to?
60 in-lbs (6.7 N-m) on the 1/4 inch studs.
