EGIS 150A Common Busbar, Two Stud, 10 Screw
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

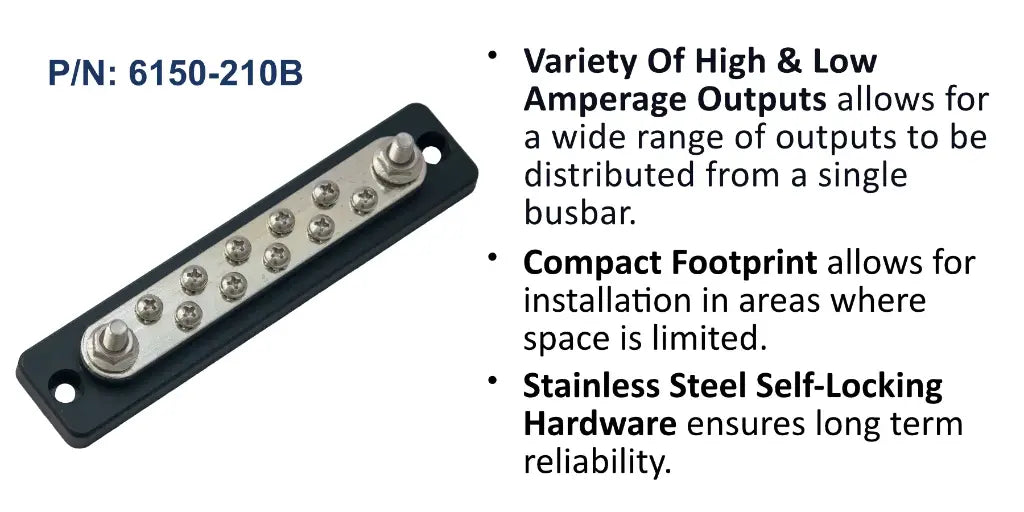

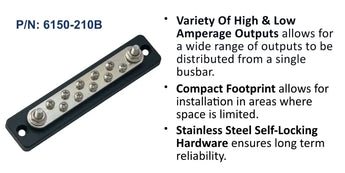

The EGIS 150A common busbar distributes power from two 1/4-20 input studs to ten #8-32 screw terminals, rated to a maximum of 48Vdc. The tin-plated copper conductor provides superior electrical performance with minimal voltage drop, making it suited to higher-amperage marine and vehicle distribution.
Stainless steel self-locking hardware ensures long-term reliability under vibration, and #10 (M5) mounting holes allow secure fixing to a rigid surface. An optional transparent cover (sold separately) is available for shock protection.
PRODUCT DETAILS
- 150A rated, 48Vdc maximum
- Two 1/4-20 input studs plus ten #8-32 screw terminals
- Tin-plated copper busbar for minimal voltage drop
- Stainless steel self-locking hardware
- #10 (M5) mounting holes
- Optional transparent cover available
- CE marked
- 150A common busbar
- Stainless steel terminal hardware
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Current Rating | 150A |
| Maximum Voltage | 48Vdc |
Mechanical
| Studs | 2 x 1/4-20 |
| Screw Terminals | 10 x #8-32 |
| Stud Torque | 60 in-lbs (6.7 N-m) |
| Screw Terminal Torque | 15 in-lbs (1.7 N-m) |
| Mounting Holes | #10 (M5) |
| Busbar Material | Tin-plated copper |
General
| CE Marked | Yes |
