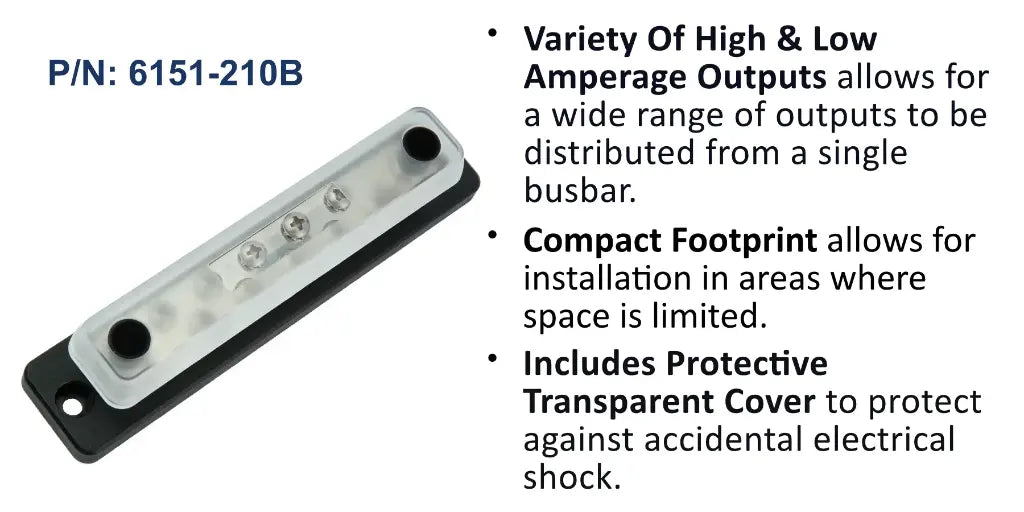

EGIS 150A Common Busbar, Two Stud, 10 Screw, With Cover
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The EGIS 150A common busbar distributes power from two 1/4-20 input studs to ten #8-32 screw terminals at up to 48Vdc, and ships complete with a transparent cover that guards against accidental shorts and incidental contact. The tin-plated copper conductor keeps voltage drop low across higher-current marine and vehicle circuits.
Stainless steel self-locking hardware ensures long-term reliability under vibration, while #10 (M5) mounting holes allow secure fixing to a rigid surface. The cover presses onto the stud terminals via rubber grommets for a clean, protected installation.
PRODUCT DETAILS
- 150A rated, 48Vdc maximum
- Two 1/4-20 input studs plus ten #8-32 screw terminals
- Supplied with transparent protective cover
- Tin-plated copper busbar for minimal voltage drop
- Stainless steel self-locking hardware
- #10 (M5) mounting holes
- CE marked
- 150A common busbar
- Transparent protective cover
- Stainless steel terminal hardware
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Current Rating | 150A |
| Maximum Voltage | 48Vdc |
Mechanical
| Studs | 2 x 1/4-20 |
| Screw Terminals | 10 x #8-32 |
| Stud Torque | 60 in-lbs (6.7 N-m) |
| Screw Terminal Torque | 15 in-lbs (1.7 N-m) |
| Mounting Holes | #10 (M5) |
| Busbar Material | Tin-plated copper |
General
| Cover | Transparent, included |
| CE Marked | Yes |
