EGIS XD Dual 2-Pole Flex 2 Relay / Relay 500A with Knobs
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

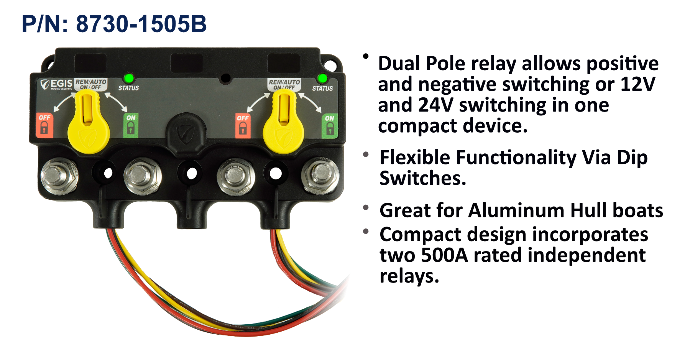

This XD Flex 2 unit is a two-pole, dual-circuit intelligent relay that switches both the positive and the ground lead of each circuit, meeting aluminium-hull and US Coast Guard safety requirements for isolated switching of both conductors. It is built for multi-voltage, multi-chemistry installations, handling 12 V and 24 V switching in a single compact device, and the bi-stable solenoid design carries 500 A continuously and up to 1,500 A cranking while drawing only 1.3 mA in the off state. Remote on, off and auto inputs allow the relay to be forced closed or open, or left to operate automatically on voltage sensing.
Each relay has its own three-position manual override knob to force the relay open or closed and lock it, with a front-facing LED reporting status and an optional remote LED replicating it. Behaviour is tailored through the DIP switches under the protective cover, covering the low-voltage off set-point, delay-off time and the voltage differential used for a warning signal. The case is sealed to IP67 and IP6K9K with an integrated Gore-Tex vent and stainless steel studs, a 40-circuit waterproof label sheet and terminal cover are included, and the unit can be linked to further XD relays with the 8790 and 8791 busbars.
PRODUCT DETAILS
- Two-pole switching isolates both positive and ground leads for aluminium-hull and USCG compliance
- Multi-voltage capability handles 12 V and 24 V circuits in one device
- Dual-circuit 500 A continuous and 1,500 A cranking from a compact bi-stable design
- Remote on/off/auto inputs force the relays closed or open or allow automatic voltage sensing
- Individual three-position manual override knobs lock each relay open or closed
- DIP-switch programmable low-voltage off set-point, delay-off time and warning differential
- Sealed to IP67 and IP6K9K with integrated Gore-Tex vent and stainless steel hardware
- XD dual-circuit two-pole Flex 2 relay with two three-position manual override knobs
- Protective terminal cover with circuit label recesses
- 40-circuit waterproof label sheet
- 18-8 stainless steel studs and self-locking flanged nuts
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Continuous Current | 500 A |
| Max Cranking Current | 1,500 A |
| Voltage Range | 8-36 V DC |
| Off-State Current Draw | 1.3 mA |
| State Change Current | 5A at 12 Vdc / 3A at 24 Vdc |
| Multi-Voltage Switching | 12 V and 24 V capable |
| Control Inputs | Remote on / off / auto |
Mechanical
| Circuit Configuration | Dual circuit, two-pole (positive and ground) |
| Mechanical Switching Life | 1,000,000 cycles |
| Ingress Protection | IP67 / IP6K9K |
| Manual Override | Two three-position knobs (lockable) |
| Mounting Hardware | 1/4-20 / M6 holes; 18-8 stainless steel studs, self-locking flanged nuts |
