EGIS 200A Dual Level Busbar, 19 Screw, With Cover
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

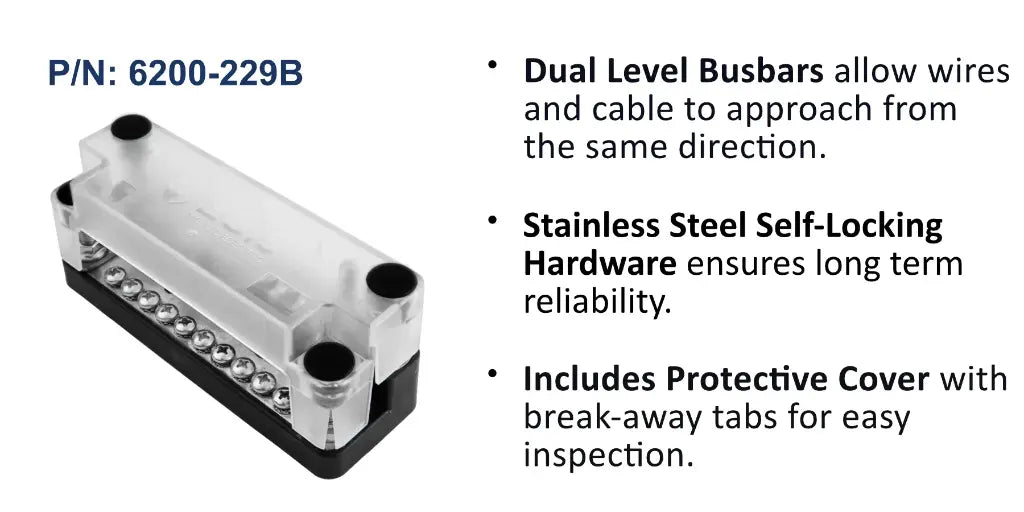

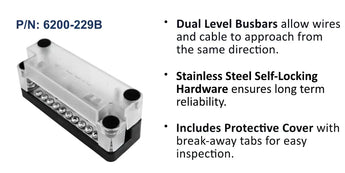

The EGIS 200A dual-level busbar in its nineteen-screw form stacks two busbars so wires and cable can approach from the same direction, with an offset link busbar tying the levels together. Three studs and nineteen screw terminals rated to a maximum of 80Vdc make it suited to high-density distribution where routing space is limited.
The included transparent cover allows inspection of torque markings without removal and provides break-away tabs for cable access. The base is glass-filled nylon, conductors are tin-plated copper, and stainless steel self-locking hardware ensures reliability from -40C to 125C.
PRODUCT DETAILS
- 200A rated, 80Vdc maximum
- Three studs plus nineteen screw terminals
- Dual-level design with same-direction cable approach
- Offset link busbar ties levels together
- Transparent cover with torque-mark inspection and break-away tabs
- Tin-plated copper conductors
- Stainless steel self-locking hardware
- 200A dual-level busbar
- Offset link busbar
- Transparent cover
- Stainless steel terminal hardware
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Current Rating | 200A |
| Maximum Voltage | 80Vdc |
Mechanical
| Studs | 3 |
| Screw Terminals | 19 |
| M6 Nut Torque | 80 in-lbs (9.0 N-m) recommended, 100 in-lbs (11.3 N-m) max |
| Mounting Holes | 4 x #10 (M5) and 2 x 1/4 inch (M6) |
| Mounting Screw Max Torque | 50 in-lbs (5.5 N-m) |
| Busbar Material | Tin-plated copper |
| Base Material | Nylon 6 30% GF |
| Cover Material | Clear polycarbonate |
Environmental
| Operating Temperature | -40C to 125C |
