EGIS 250A MaxiBus Busbar, Four Stud, 4 Screw
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The EGIS 250A MaxiBus four-stud busbar combines four M8 (5/16 inch) studs with four screw terminals at up to 80Vdc, giving a balance of heavy cable connections and smaller branch outputs. The insert-molded busbar and studs maximise strength while the tin-plated copper conductor keeps voltage drop low under high current.

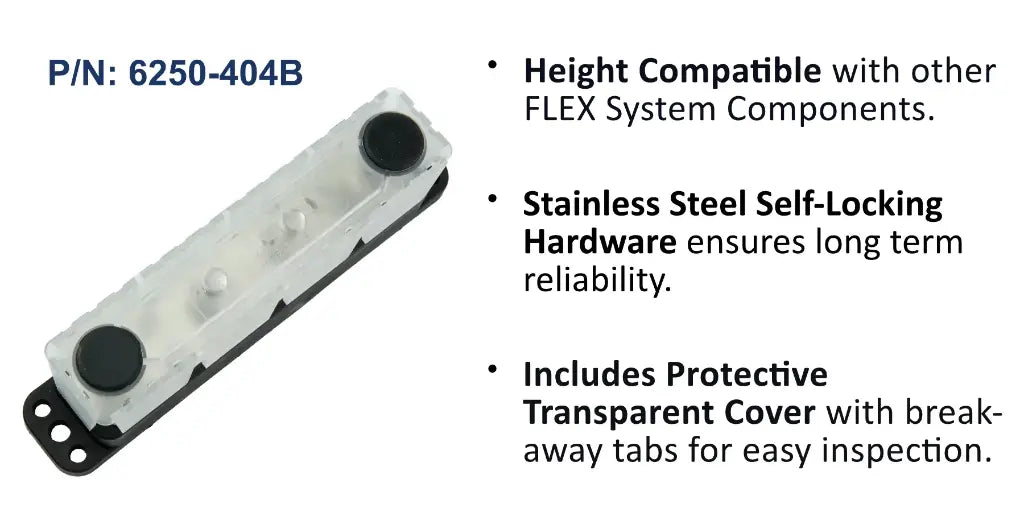

A clear polycarbonate cover allows inspection of torque markings without removal and provides break-away tabs for cable access. The busbar is FLEX system height compatible, accepts #10 (M5) or 1/4 inch (M6) mounting screws, and uses stainless steel self-locking hardware rated from -40C to 125C.
PRODUCT DETAILS
- 250A rated, 80Vdc maximum
- Four M8 (5/16 inch) studs plus four screw terminals
- Insert-molded busbar and studs for strength
- Tin-plated copper for minimal voltage drop
- Clear polycarbonate cover with break-away tabs
- FLEX system height compatible
- Stainless steel self-locking hardware
- 250A MaxiBus busbar
- Clear polycarbonate cover
- Stainless steel terminal hardware
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Current Rating | 250A |
| Maximum Voltage | 80Vdc |
Mechanical
| Studs | 4 x M8 (5/16 inch) |
| Screw Terminals | 4 |
| M8 Nut Torque | 100 in-lbs (11.3 N-m) recommended, 120 in-lbs (13.6 N-m) max |
| Mounting Holes | 4 x #10 (M5) and 2 x 1/4 inch (M6) |
| Mounting Screw Max Torque | 50 in-lbs (5.5 N-m) |
| Busbar Material | Tin-plated copper |
| Base Material | Nylon 6 30% GF |
| Cover Material | Clear polycarbonate |
Environmental
| Operating Temperature | -40C to 125C |
General
| FLEX System Compatible | Yes |
