EGIS 250A PowerBar Busbar, 2 x M10 Studs + 2 Screw Terminals
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

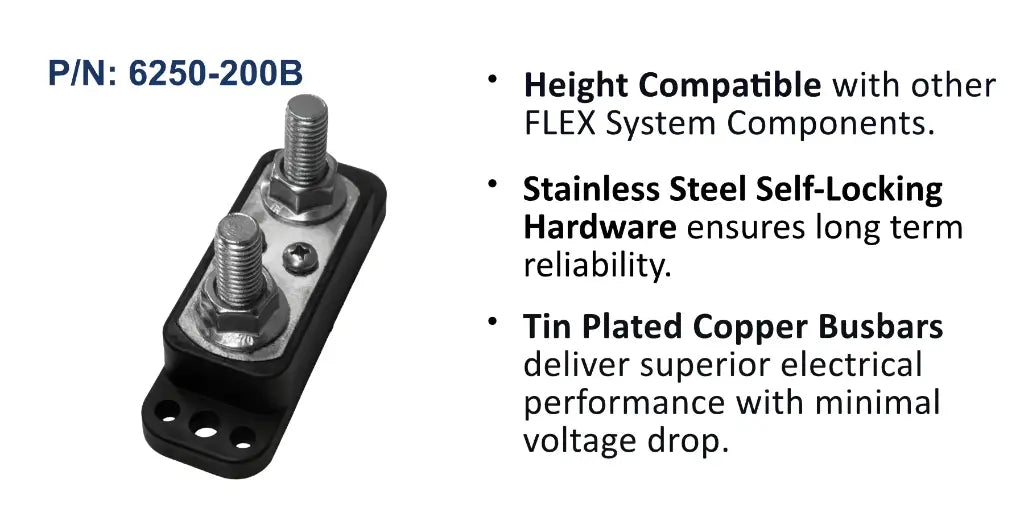

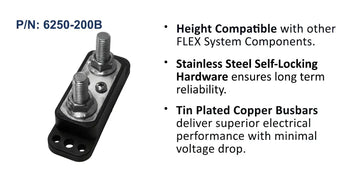

The EGIS 6250-200 PowerBar is a 250A busbar with two M10 (3/8") studs and two dedicated screw terminals, allowing multiple devices to share a common power source. Its mix of high and low amperage outputs and compact footprint make it well suited to distributing power where space is limited.
The busbar is tin-plated copper for superior electrical performance with minimal voltage drop, mounted on a bullet-proof Nylon 6 30% glass-filled base with stainless steel self-locking hardware. It is FLEX System compatible, rated to 80V DC, and backed by a 4-year warranty.
PRODUCT DETAILS
- 250A continuous current rating
- Two M10 (3/8") studs plus two screw terminals
- Tin-plated copper for minimal voltage drop
- Nylon 6 30% glass-filled base, stainless hardware
- FLEX System compatible
- Rated to 80V DC
- 4-year warranty
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Continuous Current | 250 A |
| Max Voltage | 80 V DC |
Mechanical
| Busbar Material | Tin-plated copper |
| Base Material | Nylon 6 30% glass-filled |
| Mounting Holes | 4x #10 (M5) and 2x 1/4" (M6) |
