EGIS
EGIS 600A PowerBar Busbar, 8 x M10 Studs + 8 Screw Terminals
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

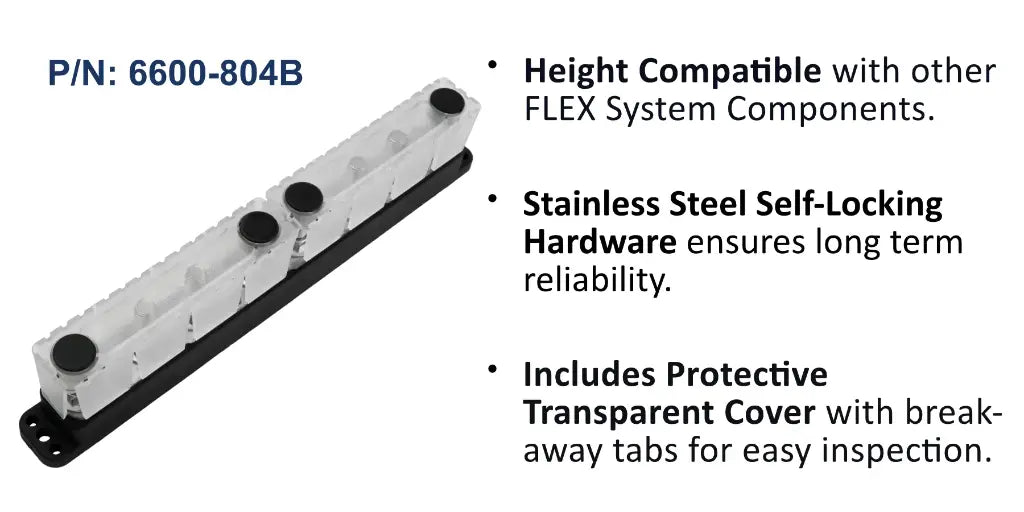

The EGIS 6600-804 PowerBar is a 600A busbar with eight M10 (3/8") studs and eight dedicated screw terminals, giving extensive distribution capacity from a single common power source. It suits larger installations where many high and low amperage circuits must be fed from one robust busbar.
The busbar is tin-plated copper for superior electrical performance with minimal voltage drop, mounted on a bullet-proof Nylon 6 30% glass-filled base with stainless steel self-locking hardware. It is FLEX System compatible, rated to 80V DC, and backed by a 4-year warranty.
PRODUCT DETAILS
- 600A continuous current rating
- Eight M10 (3/8") studs plus eight screw terminals
- Tin-plated copper for minimal voltage drop
- Nylon 6 30% glass-filled base, stainless hardware
- FLEX System compatible
- Rated to 80V DC
- 4-year warranty
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Continuous Current | 600 A |
| Max Voltage | 80 V DC |
Mechanical
| Busbar Material | Tin-plated copper |
| Base Material | Nylon 6 30% glass-filled |
| Mounting Holes | 4x #10 (M5) and 2x 1/4" (M6) |
