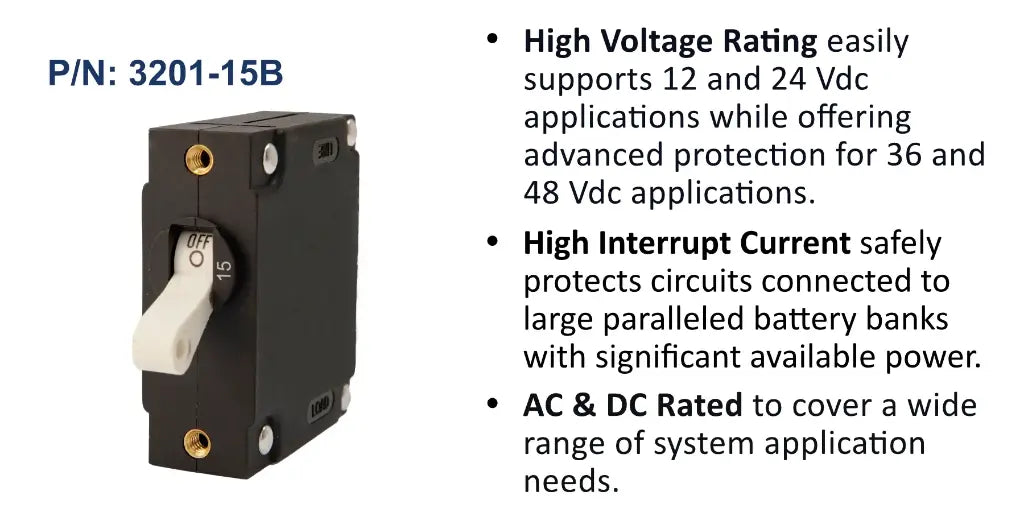

EGIS A Series 15A Circuit Breaker, Single Pole
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The EGIS A Series circuit breaker is a hydraulic-magnetic panel-mount breaker designed for switching and overload protection in marine, recreational vehicle and industrial low-voltage systems. Rated at 15A in a single pole configuration, it carries both AC and DC ratings and provides reliable trip-free protection that is unaffected by ambient temperature changes, making it well suited to the demanding conditions found on board.
The white toggle actuator doubles as an ON/OFF switch and a visible trip indicator, while the compact panel-mount body fits standard breaker cut-outs for clean, professional installations. Built to UL 1077 as a supplementary protector, the A Series combines dependable circuit control with the corrosion resistance and long mechanical life expected of EGIS Mobile Electric products.
PRODUCT DETAILS
- 15A single pole hydraulic-magnetic circuit breaker
- Rated 277Vac and 80Vdc for AC and DC circuits
- White toggle actuator acts as switch and trip indicator
- Trip-free design that cannot be held closed against a fault
- Panel-mount body fits standard breaker cut-outs
- Built to UL 1077 as a supplementary protector
- Suitable for marine, RV and industrial applications
- 1 x A Series panel-mount circuit breaker
- Mounting screws
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Current Rating | 15A |
| Voltage Rating AC | 277Vac |
| Voltage Rating DC | 80Vdc |
| Poles | Single pole |
| Interrupt Capacity | 5,000A at 277Vac / 1,500A at 80Vdc |
| Electrical Endurance | 6,000 cycles |
| Regulatory Compliance | UL 1077 |
Mechanical
| Mounting | Panel mount |
| Actuator | White toggle |
