EGIS 85 Series 25A Circuit Breaker, Panel Mount
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

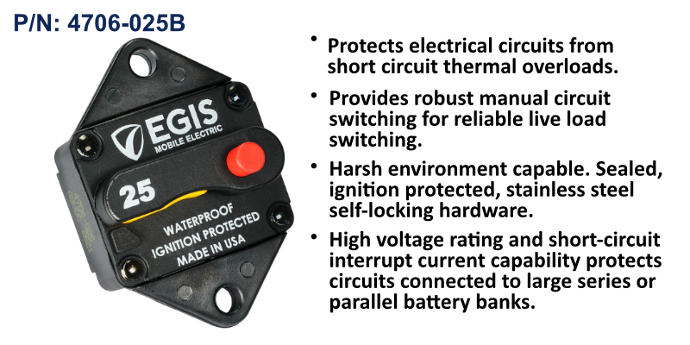

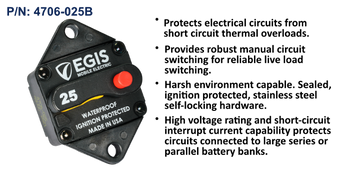

The EGIS 85 Series 4706 is a panel-mount circuit breaker that pairs automatic over-current protection with manual on/off switching. Rated at 25A and 48 VDC, it uses a Type III trip-free mechanism and supports 12V, 24V, 36V and 48V systems, making it a versatile choice for protecting heavier circuits on marine and mobile installations.
Sealed to IP67 against dust and water intrusion, the breaker is built for harsh environments and made in the USA from high quality components. Integrated terminal insulators guard against inadvertent shorts to adjacent grounded surfaces, while stainless steel hardware with serrated flange nuts resists corrosion and vibration. A matching trim bezel is available to finish the panel cut-out neatly.
PRODUCT DETAILS
- Panel-mount 85 Series circuit breaker
- Rated 25A at 48 VDC
- Type III trip-free operation with on/off switching
- IP67 sealed against dust and water intrusion
- Integrated terminal insulators prevent inadvertent shorts
- Stainless steel hardware with serrated flange nuts
- Optional matching trim bezel available
- 1 x EGIS 85 Series 25A panel-mount circuit breaker
- Mounting hardware
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Current Rating | 25A |
| Voltage Rating | 48 VDC max |
| Interrupt Capacity | 3,000A at 14 VDC, 1,500A at 48 VDC |
Mechanical
| Mounting | Panel mount |
| Ingress Protection | IP67 |
| Reset Type | Type III trip-free with manual on/off switching |
