Description

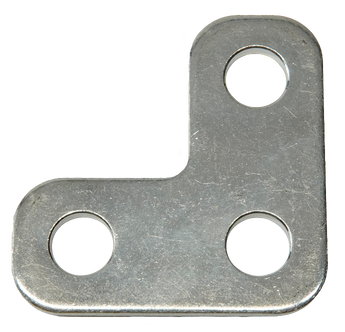

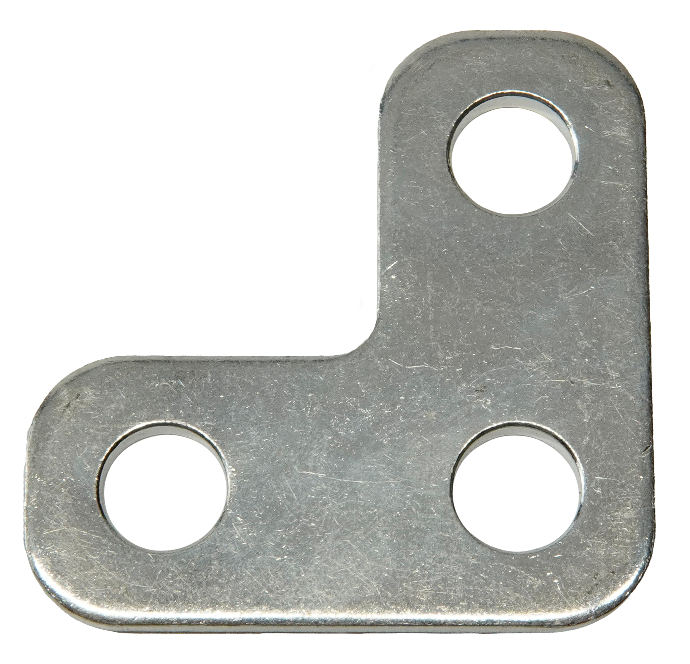

The EGIS three-hole L-shape busbar provides a right-angle connection point for joining heavy cables, with three holes sized to accept M8 or M10 (10.5mm / 3/8 inch) studs. The L-shape footprint measures 90mm by 90mm and the bar is 2.8mm (1/8 inch) thick, made from tin-plated copper for low voltage drop and corrosion resistance.
This solid busbar suits high-current junctions where cables need to change direction or where a compact, rigid tie point is required between battery, switching and distribution components.
PRODUCT DETAILS
- Three M8/M10 (10.5mm) holes
- L-shape footprint, 90mm x 90mm
- Right-angle cable junction
- 2.8mm (1/8 inch) thickness
- Tin-plated copper for minimal voltage drop
- Corrosion-resistant plating
- 3 hole L-shape busbar
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Mechanical
| Holes | 3 |
| Hole Size | 10.5mm (3/8 inch), M8/M10 |
| Shape | L shape |
| Footprint | 90mm x 90mm |
| Thickness | 2.8mm (1/8 inch) |
| Material | Tin-plated copper |
No videos available for this product.
No downloads available for this product.
What stud sizes does it accept?
M8 or M10 studs, through 10.5mm (3/8 inch) holes.
What shape is it?
An L shape with a 90mm by 90mm footprint, for right-angle cable junctions.
What is it made from?
Tin-plated copper for low voltage drop and corrosion resistance.
