Description

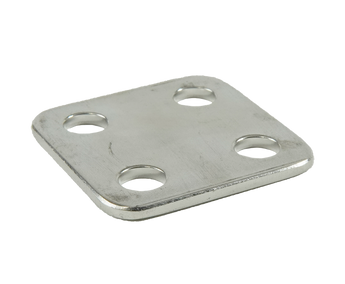

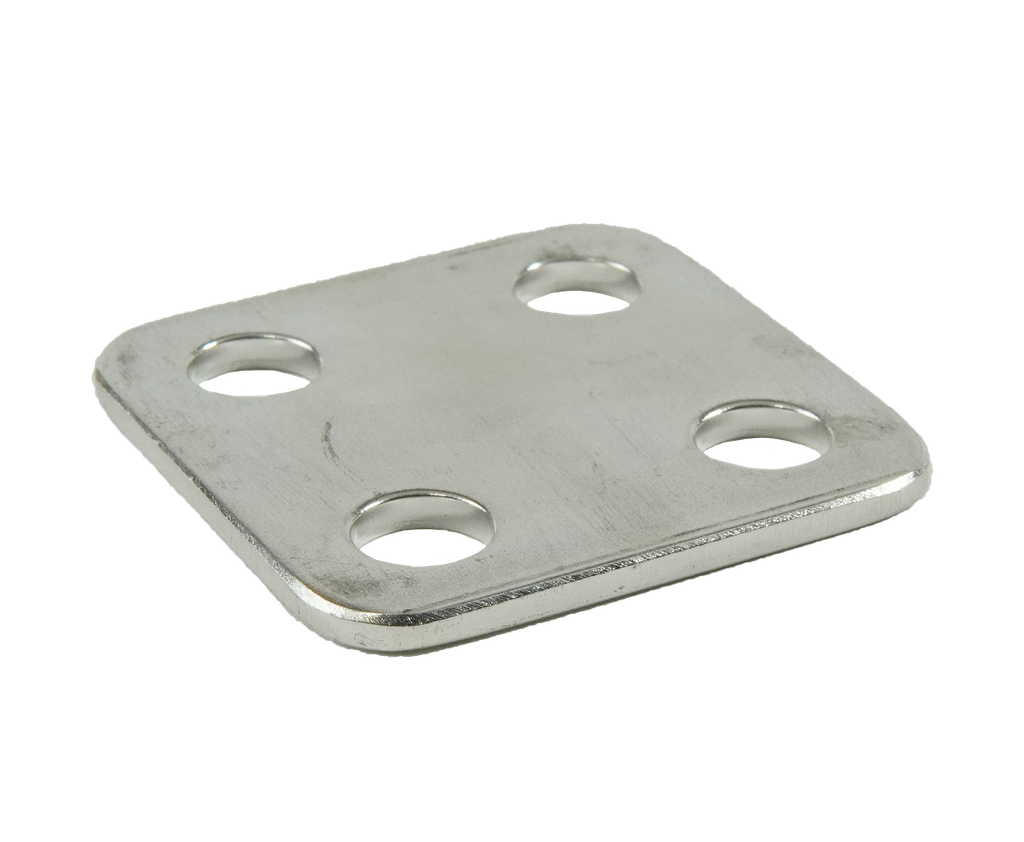

The EGIS four-hole quad busbar provides a common high-current tie point with four holes sized to accept M8 or M10 (10.5mm / 3/8 inch) studs. The footprint measures 90mm by 90mm and the bar is 2.8mm (1/8 inch) thick, made from tin-plated copper for low voltage drop and corrosion resistance.
This solid busbar suits high-current junctions where several heavy cables meet, providing a rigid, compact connection between battery, switching and distribution components.
PRODUCT DETAILS
- Four M8/M10 (10.5mm) holes
- Quad footprint, 90mm x 90mm
- Common high-current tie point
- 2.8mm (1/8 inch) thickness
- Tin-plated copper for minimal voltage drop
- Corrosion-resistant plating
- 4 hole quad busbar
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Mechanical
| Holes | 4 |
| Hole Size | 10.5mm (3/8 inch), M8/M10 |
| Shape | Quad |
| Footprint | 90mm x 90mm |
| Thickness | 2.8mm (1/8 inch) |
| Material | Tin-plated copper |
No videos available for this product.
No downloads available for this product.
How many holes does it have?
Four, accepting M8 or M10 studs through 10.5mm (3/8 inch) holes.
What is it used for?
As a common high-current tie point where several heavy cables meet.
What is it made from?
Tin-plated copper for low voltage drop and corrosion resistance.
