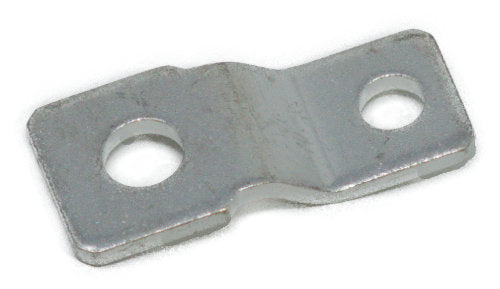

EGIS Offset Link Busbar, 3/16 inch, for PDM-14 to RT Fuse Block
£4.30
/
Tax included.
901466
An offset tin-plated copper link busbar that connects an EGIS PDM-14 to an RT Series fuse block.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
This EGIS offset link busbar ties an EGIS PDM-14 power distribution module to an RT Series fuse block, with an offset profile that brings the two units to the correct relative height. The bar measures 47.8mm long by 40.64mm wide and is 2.5mm (3/16 inch) thick, with 6.5mm mounting holes.
Made from tin-plated copper, it offers low voltage drop and corrosion resistance for a reliable high-current connection between the module and the fuse block.
PRODUCT DETAILS
- Links EGIS PDM-14 to RT Series fuse block
- Offset profile sets correct relative height
- 47.8mm long x 40.64mm wide
- 6.5mm mounting holes
- 2.5mm (3/16 inch) thickness
- Tin-plated copper for minimal voltage drop
- Offset link busbar
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Mechanical
| Function | Links EGIS PDM-14 to RT Series fuse block |
| Length | 47.8mm |
| Width | 40.64mm |
| Thickness | 2.5mm (3/16 inch) |
| Hole Size | 6.5mm |
| Material | Tin-plated copper |
No videos available for this product.
No downloads available for this product.
What does this busbar connect?
It links an EGIS PDM-14 power distribution module to an RT Series fuse block.
Why is it offset?
The offset profile sets the two units to the correct relative height.
What is it made from?
Tin-plated copper for low voltage drop and corrosion resistance.
