EGIS

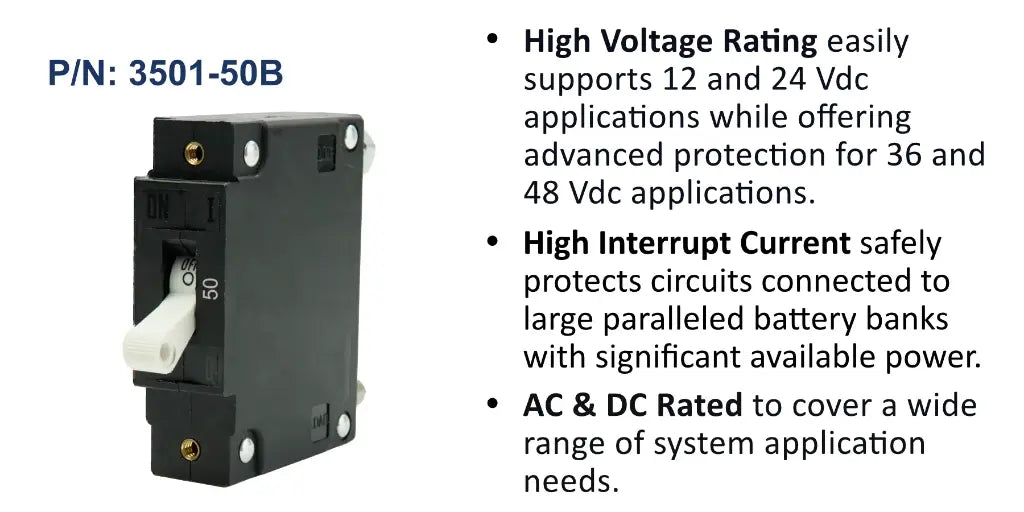

EGIS C Series 50A Circuit Breaker
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The EGIS C Series is a heavy-duty hydraulic-magnetic panel-mount circuit breaker built for switching and overload protection in larger marine, recreational vehicle and industrial low-voltage circuits. Rated at 50A in a single pole configuration, it carries a higher 125Vdc rating than the A Series and delivers trip-free protection that remains stable across changing ambient temperatures.
A white toggle actuator serves as both an ON/OFF switch and a visible trip indicator, and the breaker ships with panel-mount locking hardware for a secure, professional installation. Built to UL 1077 as a supplementary protector, the C Series offers dependable high-current circuit control together with the corrosion resistance and long mechanical life expected of EGIS Mobile Electric products.
PRODUCT DETAILS
- 50A single pole hydraulic-magnetic circuit breaker
- Rated 277Vac and 125Vdc for AC and higher-voltage DC circuits
- White toggle actuator acts as switch and trip indicator
- Supplied with panel-mount locking hardware
- Trip-free design that cannot be held closed against a fault
- Built to UL 1077 as a supplementary protector
- Suitable for marine, RV and industrial applications
- 1 x C Series panel-mount circuit breaker
- Panel-mount locking hardware
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Current Rating | 50A |
| Voltage Rating AC | 277Vac |
| Voltage Rating DC | 125Vdc |
| Poles | Single pole |
| Interrupt Capacity | 5,000A at 277Vac / 2,000A at 125Vdc |
| Electrical Endurance | 6,000 cycles |
| Regulatory Compliance | UL 1077 |
Mechanical
| Mounting | Panel mount with locking hardware |
| Actuator | White toggle |
