EGIS
EGIS CableCap Stud Insulator, 2/0-2 AWG, Red
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

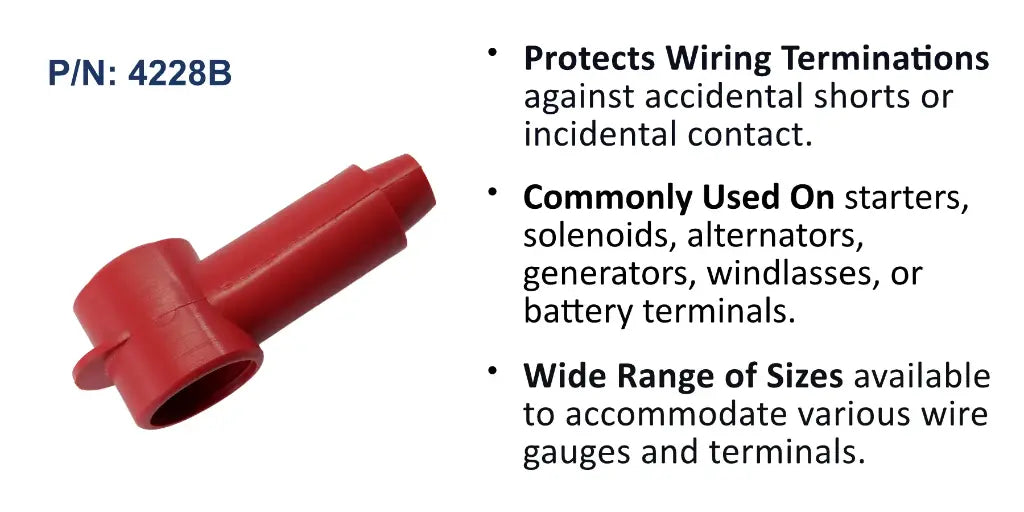

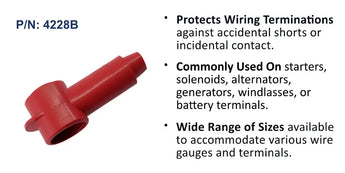

EGIS CableCap stud insulators protect wiring terminations against accidental shorts or incidental contact, and are commonly fitted to starters, solenoids, alternators, generators, windlasses and battery terminals. This red variant suits 2/0 to 2 AWG terminations with a terminal diameter up to 28.2mm (1.11 inch) and a post height of 44.5mm (1.75 inch).
Moulded from high-temperature PVC with a UL-94 V2 flammability rating, the cap offers rugged construction for use anywhere on a vehicle or vessel. Red is used for positive-side insulation, and the design supports industry standards by covering live terminations to prevent electrical hazards.
PRODUCT DETAILS
- Fits 2/0 to 2 AWG stud terminations
- Terminal diameter up to 28.2mm (1.11 inch)
- Red for positive-side insulation
- High-temperature PVC, UL-94 V2 flammability rating
- Protects against accidental shorts and incidental contact
- 4 year warranty
- One red CableCap stud insulator
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Wire Size | 2/0 to 2 AWG |
Mechanical
| Terminal Diameter | 28.2mm (1.11 inch) |
| Post Height | 44.5mm (1.75 inch) |
| Colour | Red |
| Material | PVC |
General
| Flammability Rating | UL-94 V2 |
No videos available for this product.
