EGIS
EGIS 87 Series 120A Circuit Breaker, Panel Mount
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

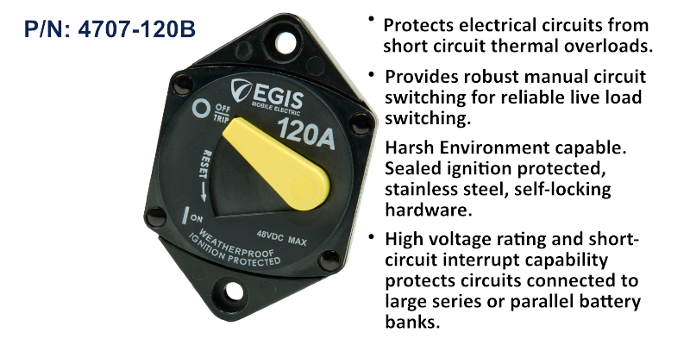

The EGIS 87 Series 120A panel mount circuit breaker delivers automatic thermal overload protection alongside a manual ON/OFF switch, so it can act as both circuit protection and a master disconnect. Of marine grade construction and rated to 48V DC, it is weatherproof to IP66 and ignition protected, making it safe to fit in engine and fuel compartments as well as exposed locations aboard.
A Type III trip-free mechanism opens the circuit on a genuine overload even when the lever is held closed, then resets manually after the fault clears. A circular body fits a standard round panel cutout for quick in-panel installation, the high-visibility lever shows breaker status at a glance, and stainless steel hardware keeps connections tight in harsh environments. The breaker is CE marked and made in the U.S.A..
PRODUCT DETAILS
- 120A rated thermal circuit breaker
- Manual ON/OFF switching plus automatic overload protection
- IP66 weatherproof and ignition protected
- 48V DC voltage rating, CE marked
- Type III trip-free mechanism with manual reset
- 5,000 A interrupt capacity at 14V DC
- Marine grade, panel mount, made in the U.S.A.
- EGIS 87 Series 120A panel mount circuit breaker
- Stainless steel mounting hardware
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Current Rating | 120A |
| Voltage Rating | 48V DC |
| Interrupt Capacity @ 14 VDC | 5,000 A |
| Interrupt Capacity @ 28 VDC | 3,000 A |
| Interrupt Capacity @ 48 VDC | 1,500 A |
Mechanical
| Mounting | Panel Mount |
| Ingress Protection | IP66 |
| Ignition Protected | Yes |
| Reset Type | Manual |
| Trip-Free | Type III |
