EGIS Sealed Class T Fuse Block, 110-200A

£77.33
Tax included.
3911
Sealed single-circuit Class T fuse block rated 110 to 200A for high-current marine and lithium battery installations. Ignition protected with separate stud connections for heavy cable mounting.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

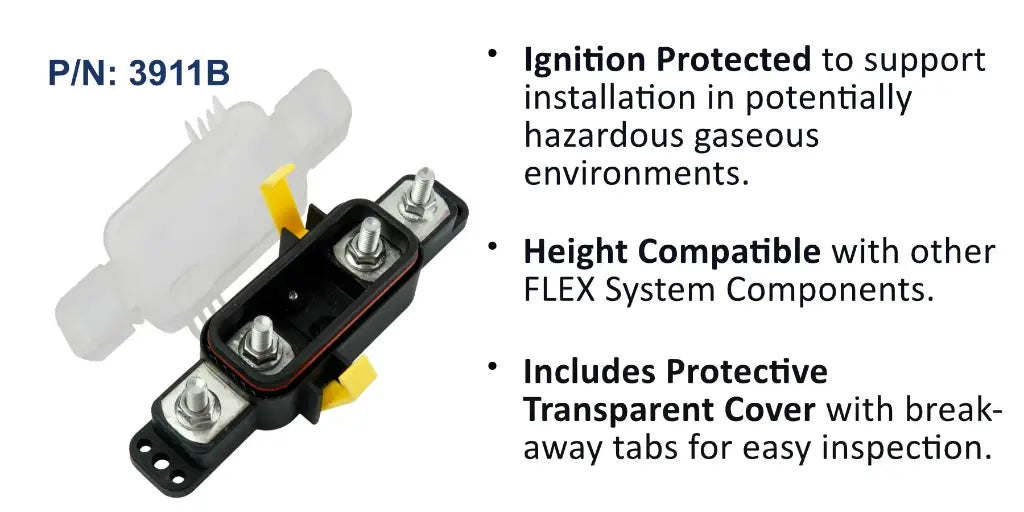

The EGIS Sealed Class T Fuse Block provides single-circuit overcurrent protection for 110 to 200A applications where a very high interrupt capacity is required, making it ideally suited to lithium battery banks and other large DC power systems. Separate stud connections allow heavier gauge cables and their terminals to feed in and out of the fuse rather than landing on the fuse tab itself, while the sealed glass-filled nylon body is ignition protected to support installation in potentially hazardous gaseous environments such as on LPG or gas boats.

Built in the U.S.A., the block uses a tin-plated copper busbar for superior electrical performance with minimal voltage drop and stainless steel self-locking hardware for long term connection reliability in demanding conditions. It is FLEX System compatible, allowing simple busbar connection to other height-compatible FLEX components, and ships with a transparent cover with break-away tabs for cable and terminal access. EGIS backs the product with a 4 year warranty.

PRODUCT DETAILS

  • Sealed single-circuit Class T fuse block rated 110 to 200A
  • Very high interrupt capacity ideal for lithium battery banks
  • Ignition protected for hazardous gaseous environments such as LPG or gas boats
  • Separate stud connections allow heavy gauge cable mounting away from the fuse tab
  • Tin-plated copper busbar for minimal voltage drop
  • Stainless steel self-locking hardware and FLEX System compatible busbars
  • Includes transparent cover with break-away tabs for cable and terminal access
  • Sealed Class T fuse block (single circuit, 110-200A)
  • Transparent cover with break-away tabs
  • Stainless steel self-locking mounting hardware

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Electrical

Amp Rating110-200A
Maximum Voltage80 VDC
Fuse TypeClass T
Circuits1

Mechanical

Busbar MaterialTin-Plated Copper
Mounting Holes4x #10 (M5) and 2x 1/4 in (M6)
Mounting Screw Max Torque50 in-lbs (5.5 N-m)
HardwareStainless steel self-locking
Ingress ProtectionIP66, IP67, IP6K9K
Ignition ProtectedYes

No videos available for this product.

Why choose a Class T fuse for a lithium battery bank?
Class T fuses offer a very high interrupt capacity, meaning they can safely break the very large fault currents that lithium battery banks are capable of delivering. This makes them a preferred choice for protecting high-current lithium installations.
What amperage range does this block cover?
This block is designed for 110 to 200A Class T fuses. EGIS offers sibling blocks covering 70-100A, 225-400A and 450-600A for other current circuits.
Is this fuse block suitable for gas or LPG boats?
Yes. The sealed block is ignition protected, which supports installation in potentially hazardous gaseous environments such as LPG or gas boats.
Can it connect to other FLEX System components?
Yes. The block is FLEX System compatible and uses height-compatible interconnected busbars for easy connection to other FLEX components.
