EGIS Sealed Class T Fuse Block, 225-400A
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

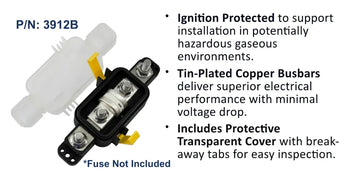

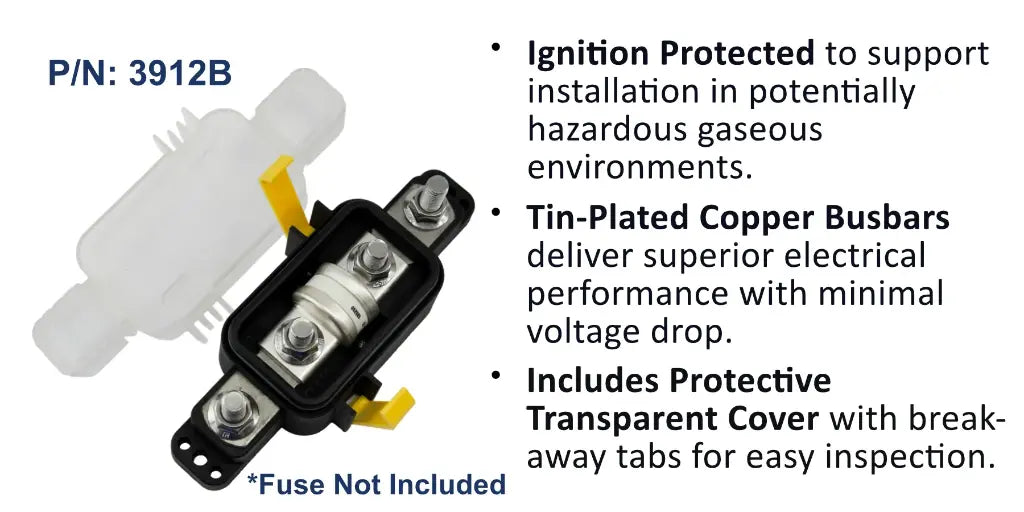

The EGIS Sealed Class T Fuse Block provides single-circuit overcurrent protection for 225 to 400A applications where a very high interrupt capacity is required, making it ideally suited to lithium battery banks and other large DC power systems. Separate stud connections allow heavier gauge cables and their terminals to feed in and out of the fuse rather than landing on the fuse tab itself, while the sealed glass-filled nylon body is ignition protected to support installation in potentially hazardous gaseous environments such as on LPG or gas boats.
Built in the U.S.A., the block uses a tin-plated copper busbar for superior electrical performance with minimal voltage drop and stainless steel self-locking hardware for long term connection reliability in demanding conditions. It is FLEX System compatible, allowing simple busbar connection to other height-compatible FLEX components, and ships with a transparent cover with break-away tabs for cable and terminal access. EGIS backs the product with a 4 year warranty.
PRODUCT DETAILS
- Sealed single-circuit Class T fuse block rated 225 to 400A
- Very high interrupt capacity ideal for lithium battery banks
- Ignition protected for hazardous gaseous environments such as LPG or gas boats
- Separate stud connections allow heavy gauge cable mounting away from the fuse tab
- Tin-plated copper busbar for minimal voltage drop
- Stainless steel self-locking hardware and FLEX System compatible busbars
- Includes transparent cover with break-away tabs for cable and terminal access
- Sealed Class T fuse block (single circuit, 225-400A)
- Transparent cover with break-away tabs
- Stainless steel self-locking mounting hardware
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Amp Rating | 225-400A |
| Maximum Voltage | 80 VDC |
| Fuse Type | Class T |
| Circuits | 1 |
Mechanical
| Busbar Material | Tin-Plated Copper |
| Mounting Holes | 4x #10 (M5) and 2x 1/4 in (M6) |
| Mounting Screw Max Torque | 50 in-lbs (5.5 N-m) |
| Hardware | Stainless steel self-locking |
| Ingress Protection | IP66, IP67, IP6K9K |
| Ignition Protected | Yes |
