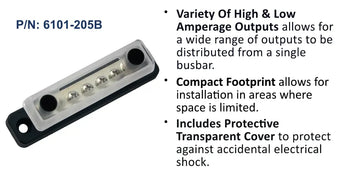

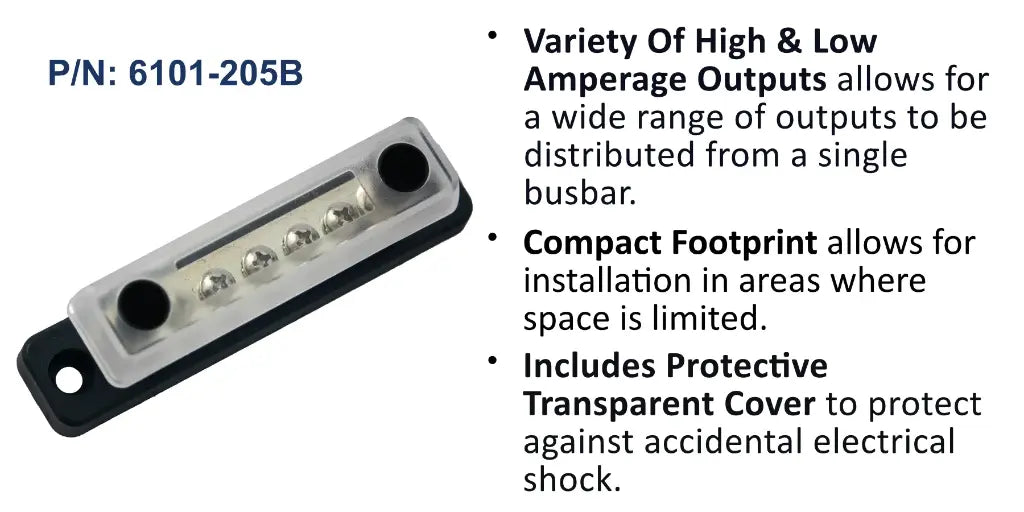

EGIS 100A MiniBus Busbar, Two Stud, 5 Screw, With Cover (Bulk Pack)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The EGIS 100A MiniBus is a compact common busbar that distributes power from two #10-24 input studs to five #8-32 screw terminals, all rated to a maximum of 48Vdc. The tin-plated copper conductor delivers low voltage drop, while the included transparent cover guards against accidental shorts and incidental contact between adjacent terminals.
Stainless steel self-locking hardware ensures long-term reliability in vibration-prone marine and vehicle installations, and the small footprint suits builds where panel space is limited. This is the bulk pack version intended for trade and volume use.
PRODUCT DETAILS
- 100A rated, 48Vdc maximum
- Two #10-24 input studs plus five #8-32 screw terminals
- Tin-plated copper busbar for minimal voltage drop
- Transparent cover protects against accidental shorts
- Stainless steel self-locking hardware
- Compact footprint for space-limited installations
- CE marked
- 100A MiniBus busbar
- Transparent protective cover
- Stainless steel terminal hardware
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Current Rating | 100A |
| Maximum Voltage | 48Vdc |
Mechanical
| Studs | 2 x #10-24 |
| Screw Terminals | 5 x #8-32 |
| Stud Torque | 18 in-lbs (2 N-m) |
| Screw Terminal Torque | 15 in-lbs (1.7 N-m) |
| Mounting Holes | #10 (M5) |
| Busbar Material | Tin-plated copper |
General
| Cover | Transparent, included |
| CE Marked | Yes |
