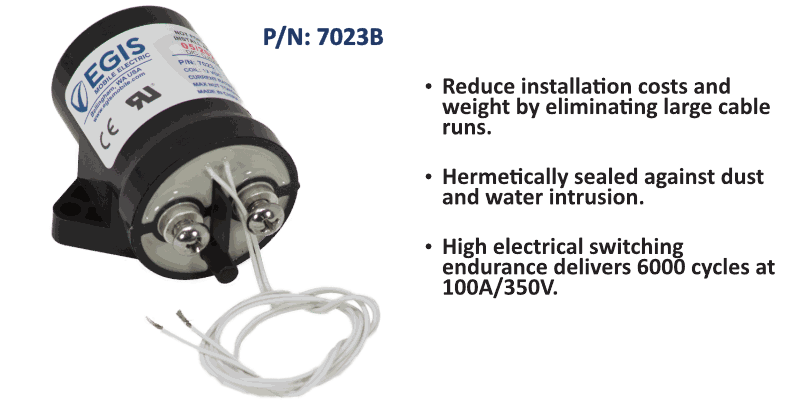

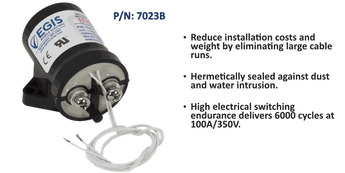

EGIS 100A Sealed Contactor 12V, Side Mount (Bulk Pack)

£79.04
Tax included.
7023B
Hermetically sealed 100A side-mount contactor for remote switching of high-current 12V engine and auxiliary loads.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

This hermetically sealed 100A contactor provides reliable remote switching of high-current 12V engine and auxiliary loads, sealing out dust and moisture for dependable operation in demanding marine and mobile environments. By replacing manual switches mounted close to the battery, it eliminates long, heavy cable runs and reduces both installation cost and weight. A high contact voltage rating lets the unit be controlled from a 12 Vdc signal while switching higher voltages up to 48V and beyond, and ignition protection to ISO-8846 and UL 1500 makes it safe to fit inside closed compartments where explosive gases may be present.

The side-mount design simplifies installation in tight spaces, with reinforced mounting holes and 18-8 stainless steel self-locking hardware holding the unit securely in place. High-temperature materials are used throughout for continuous engine-compartment service, and a maximum interrupt current of 1,250 A at 14 Vdc means the contactor can safely break very high fault currents. The result is a bullet-proof, compact switching solution built for the harshest conditions.

PRODUCT DETAILS

  • Hermetically sealed against dust and moisture for harsh environments
  • 100A continuous current rating
  • 8 to 16 V DC control voltage for 12V systems
  • Side-mount design for installation in tight spaces
  • High interrupt capability up to 1,250 A at 14 Vdc
  • Ignition protected to ISO-8846 and UL 1500 for closed compartments
  • 18-8 stainless steel self-locking hardware and IP67/IP69K sealing
  • 1 x EGIS 100A sealed side-mount contactor
  • 18-8 stainless steel self-locking mounting hardware

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Electrical

Continuous Current100 A
Operating Control Voltage8-16 V DC
Max Interrupt Current1,250 A at 14 Vdc
Electrical Endurance6,000 cycles at 100A / 350V; 100,000 cycles at 100A / 14V

Mechanical

MountingSide mount
Ingress ProtectionIP67 / IP69K
Ignition ProtectionISO-8846 / UL 1500
Min Operating Temperature-40 C
Max Operating Temperature85 C
Hardware18-8 stainless steel self-locking

No videos available for this product.

What system voltage is this contactor designed for?
This model is designed for 12V systems, with a control voltage range of 8 to 16 V DC. It switches the high-current load while being triggered from a low-current 12V control signal.
What does the side-mount design offer?
The side-mount configuration lets the contactor be fixed against a panel or bracket, which makes installation easier in confined spaces. Reinforced mounting holes and stainless steel self-locking hardware keep it secure.
Is it safe to install in an engine compartment?
Yes. It is hermetically sealed against dust and moisture, made from high-temperature materials, and ignition protected to ISO-8846 and UL 1500, so it is safe in closed compartments where explosive gases may be present.
Does this model have auxiliary contacts?
No. This is the standard model without auxiliary contacts. If you need remote on/off status indication, choose the EGIS 100A side-mount contactor with auxiliary contacts instead.
