Description

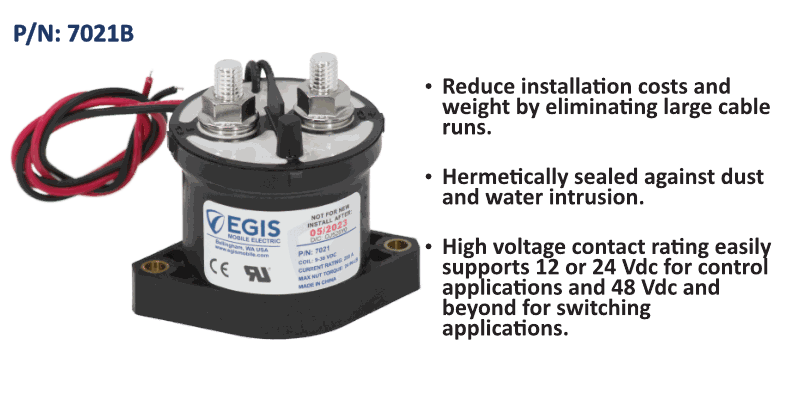

The EGIS 500A sealed contactor remotely switches high-current engine and auxiliary circuits, eliminating long cable runs to manual switches and reducing both installation cost and weight. The hermetically sealed housing keeps dust and moisture out, and high-temperature materials with stainless steel self-locking hardware suit installation almost anywhere on a vehicle or vessel, including engine compartments.
It carries 500A continuously and supports a 9 to 36 Vdc control voltage, while the contacts handle switching voltages up to 48V and beyond. High interrupt capability allows the contactor to safely open in a locked-starter situation of up to 1,500A at 14 Vdc, and it is ignition protected to ISO-8846 and UL 1500 for safe use in closed compartments where explosive gases may be present.
PRODUCT DETAILS
- Hermetically sealed against dust and moisture intrusion
- 500A continuous current rating
- 9 to 36 Vdc control voltage, switching to 48V and beyond
- High interrupt capability up to 1,500A at 14 Vdc
- Ignition protected to ISO-8846 / UL 1500
- 18-8 stainless steel self-locking hardware
- IP67 / IP69K ingress protection
- 500A sealed contactor
- Stainless steel mounting hardware
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Continuous Current | 500 A |
| Operating Control Voltage | 9-36 V DC |
| Max Interrupt Current | 1,500 A at 14 Vdc |
| Electrical Endurance | 6,000 cycles at 250A / 450V; 100,000 cycles at 250A / 14V |
Mechanical
| Ingress Protection | IP67 / IP69K |
| Ignition Protection | ISO-8846 / UL 1500 |
| Min Operating Temperature | -40 C |
| Max Operating Temperature | 85 C |
| Hardware | 18-8 stainless steel self-locking |
