EGIS CT Series 12-Way Fuse Block with LED Indication

£78.46
Tax included.
5015

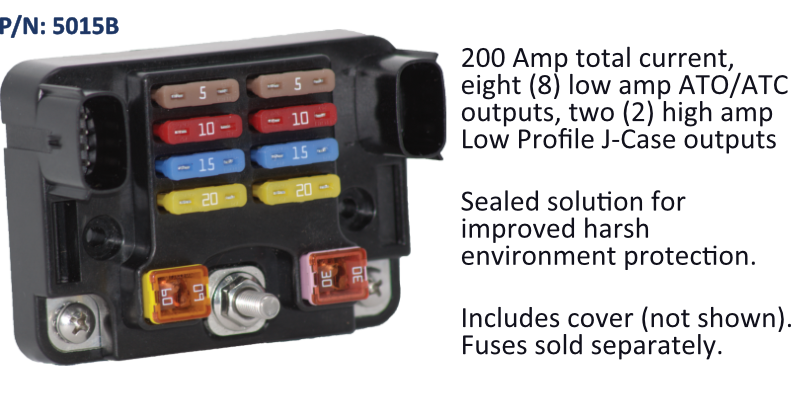

A compact CT Series hybrid fuse block combining eight low-amp ATO outputs on plug-in MX-150 connectors with two high-amp J Case outputs, for 12 to 36V systems.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The EGIS CT Series Fuse Block combines low-amp and high-amp circuit protection in one compact product, reducing both installation space and total installed time and cost. Eight low-amp ATO outputs are served by two plug-and-play MX-150 connectors, while two high-amp J Case outputs (rated 20 to 50A) handle larger loads, so a single block can cover all of the circuit-protection needs of a typical add-on system. Every output protects connected circuits from accidental short circuits to frame ground or battery negative and from overload events.

The block is built for harsh environments with 100% non-ferrous, corrosion-resistant materials and stainless steel self-locking hardware throughout. A snap-on, IP-rated fuse cover protects the positive terminals and ensures the device is ignition protected to ISO 8846 in potentially explosive environments, and recessed cover locations accept circuit-identification and function labels. Optional busbars provide space-saving connections to other devices such as the TH Series relays. It is made in the U.S.A. and backed by a four year warranty.

PRODUCT DETAILS

  • Eight low-amp ATO outputs on two plug-in MX-150 connectors
  • Two high-amp J Case outputs rated 20 to 50A
  • 200A total continuous current, 8 to 36V DC operating range
  • Ignition protected to ISO 8846 with snap-on IP-rated fuse cover
  • 100% non-ferrous, corrosion-resistant stainless steel self-locking hardware
  • M6 power inputs and recessed cover label locations
  • Optional busbars connect to TH Series relays and other devices
  • 1 x CT Series Fuse Block (8 ATO + 2 J Case)
  • Snap-on IP-rated fuse cover

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Electrical

Total Continuous Current200 A
Voltage Range8 - 36 V DC
Maximum Current per ATO Fuse22 A
Maximum Current per Low-Profile J Case Fuse50 A
Maximum Current per 4-Position MX-15050 A

Mechanical

Fuse Positions10 (8 ATO + 2 J Case)
Low-Amp Output ConnectorsTwo MX-150 plug-in connectors
Maximum Wire Gauge, MX-150 Connector14 AWG
Power InputsM6
Ignition ProtectionYes, ISO 8846

No videos available for this product.

What output types does this block provide?
It has eight low-amp ATO outputs served by two plug-in MX-150 connectors, plus two high-amp J Case outputs rated 20 to 50A.
What is the maximum current per output?
Each ATO output is rated to 22A and each low-profile J Case output to 50A, with a total continuous current of 200A for the block.
Is it ignition protected?
Yes. With its snap-on fuse cover fitted it is ignition protected to ISO 8846 for use in potentially explosive environments.
What wire size do the low-amp connectors accept?
The MX-150 connectors accept up to 14 AWG wire, and complete mating cable assemblies with circuit identifiers are available.
