EGIS Dual-Battery Charge Manager 80A ACR + 80A TDR 12V (Bulk Pack)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

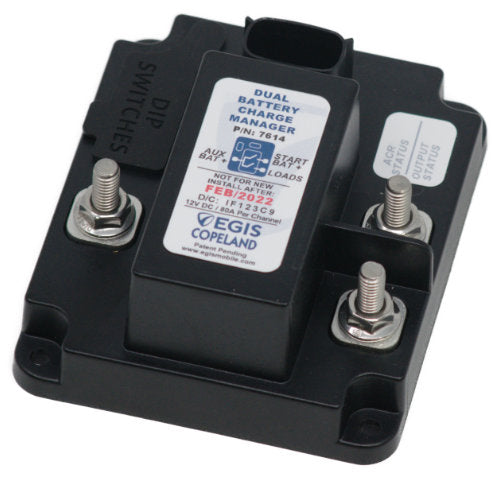

The EGIS 7614 is a TH-Series dual-battery charge manager that combines an 80A automatic charging relay (ACR) and an 80A time delay relay (TDR) in one sealed 12V module, for a 160A total continuous rating. The ACR automatically combines a start and auxiliary battery when a charge source is present and isolates them when charging stops, while the integrated TDR provides an independently programmable timed output for keep-alive or end-of-shift loads, replacing two separate devices in a single compact unit.
An ultra-low off-state current draw of 1.5mA means it draws less than 1 amp-hour per month during stand-by, so batteries are not depleted during downtime. Top-side dip switches set the time delay from 5 seconds to 16 hours and select active features, while on-board and remote LED diagnostics report relay status and pending off events. The sealed enclosure is waterproof to IP66/IP6K9K, ignition protected to ISO 8846 and built with 100% non-ferrous, corrosion-resistant stainless-steel self-locking hardware so it can be mounted almost anywhere. A Molex MX-150 integral connector with a two-foot ground and ignition mating harness is included for rapid, correct field connection.
PRODUCT DETAILS
- Combines an 80A ACR and an 80A TDR in one sealed unit (160A total continuous)
- Automatically combines and isolates two battery banks to protect the start battery
- Programmable time delay from 5 seconds to 16 hours via top-side dip switches
- Ultra-low 1.5mA off-state current draw (under 1Ah per month stand-by)
- On-board and remote LED diagnostics for relay and pending off-event status
- Sealed construction waterproof to IP66/IP6K9K and ignition protected to ISO 8846
- Stainless-steel self-locking hardware with 100% non-ferrous corrosion-resistant materials
- Molex MX-150 integral connector with two-foot ground and ignition harness included
- 1 x EGIS 7614 dual-battery charge manager (80A ACR + 80A TDR), bulk packaged
- Molex MX-150 mating connector with two feet of ground and ignition wire
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Continuous Current | 80 A per output (160 A total) |
| Intermittent Current | 120 A per output (5 minutes) |
| Voltage Range | 8 - 18 V DC (12 V nominal) |
| Off-State Current Draw | 1.5 mA |
| TDR Time Delay Range | 5 seconds to 16 hours |
Mechanical
| Operating Temperature | -40 to 55 deg C |
| Connector | Molex MX-150 with ground and ignition harness |
| Ingress Protection | IP66 / IP6K9K, ignition protected to ISO 8846 |
