EGIS 100A Dual Busbar, 2 x 10 Circuit
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

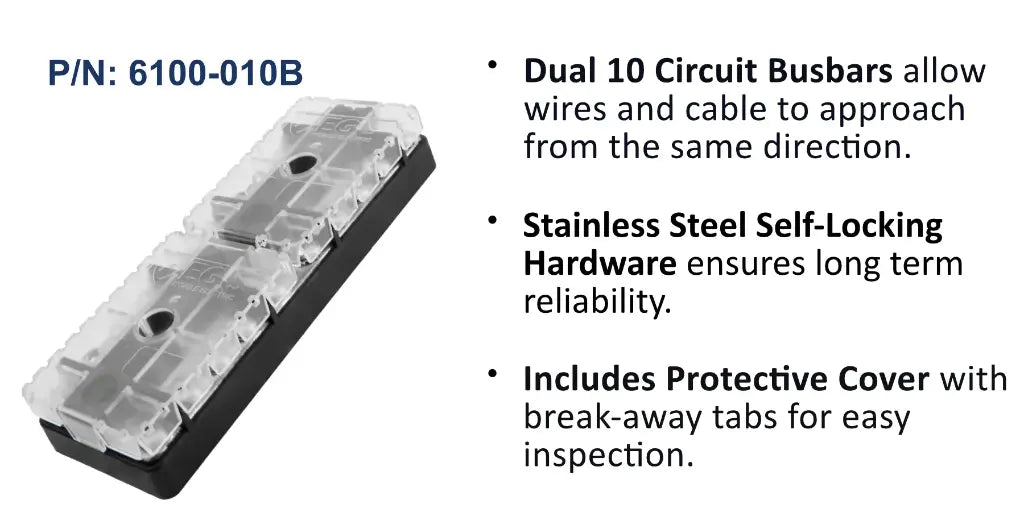

The EGIS 100A dual busbar in its ten-circuit form combines two electrically isolated busbars in one compact housing, each offering ten screw terminals, ideal for distributing both polarities or two separate circuits with a high branch-circuit count. Rated to a maximum of 80Vdc, the tin-plated copper conductors keep voltage drop low.
Stainless steel self-locking hardware ensures long-term reliability under vibration. Optional transparent covers (sold separately, two required for this model) protect against accidental shorts and incidental contact.
PRODUCT DETAILS
- 100A rated, 80Vdc maximum
- Two isolated banks of ten screw terminals
- Compact single-mount dual busbar
- Tin-plated copper for minimal voltage drop
- Stainless steel self-locking hardware
- Optional transparent covers available
- 100A dual busbar
- Stainless steel terminal hardware
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Current Rating | 100A |
| Maximum Voltage | 80Vdc |
Mechanical
| Configuration | 2 isolated busbars, 10 screw terminals each |
| Mounting Holes | 4 x #10 (M5) and 2 x 1/4 inch (M6) |
| Mounting Screw Max Torque | 50 in-lbs (5.5 N-m) |
| Busbar Material | Tin-plated copper |
| Base Material | Nylon 6 30% GF |
Environmental
| Operating Temperature | -40C to 125C |
