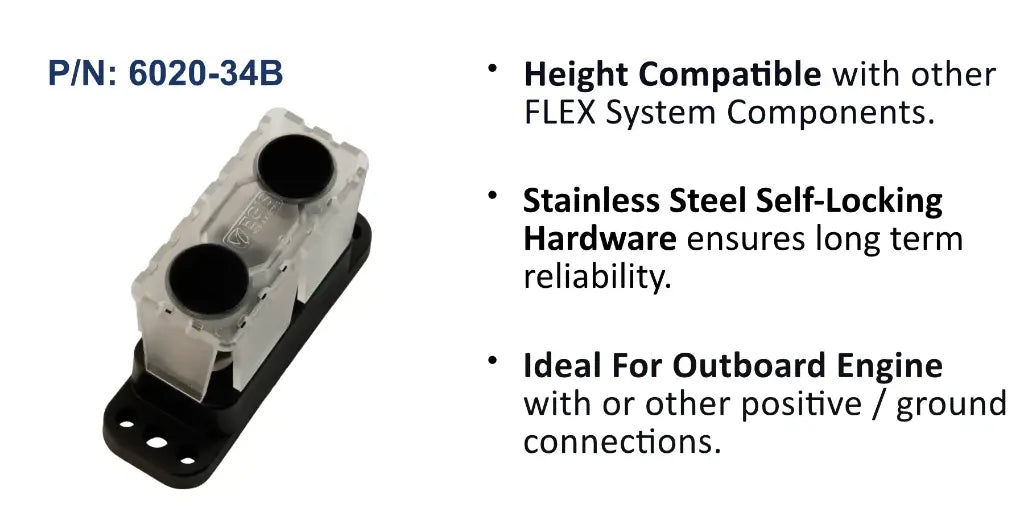

EGIS Dual Power Post, M10 and M8 Studs, With Cover
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The EGIS Dual Power Post pairs one M10 (3/8 inch) and one M8 (5/16 inch) stud in a single housing with an integrated cover, making outboard motor cable connections straightforward where two stud sizes ensure the correct voltage polarities are matched. The tin-plated copper conductors deliver minimal voltage drop under high current.
Flexible mounting hole provisions accept #10 (M5) and 1/4 inch (M6) screws, and stainless steel self-locking hardware ensures long-term reliability. Break-away tabs allow cable access where terminal diameter interferes with the cover.
PRODUCT DETAILS
- One M10 (3/8 inch) and one M8 (5/16 inch) stud
- Integrated cover with break-away tabs
- Two stud sizes help match correct polarity
- Suited to outboard motor cable connections
- Tin-plated copper for minimal voltage drop
- Flexible #10 (M5) and 1/4 inch (M6) mounting
- Stainless steel self-locking hardware
- Dual Power Post, M10 and M8
- Integrated cover
- Stainless steel terminal hardware
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Maximum Voltage | 80Vdc |
| Maximum Amperage | Based on attached cables |
Mechanical
| Studs | 1 x M10 (3/8 inch) and 1 x M8 (5/16 inch) |
| M8 Nut Torque | 100 in-lbs (11.3 N-m) recommended, 120 in-lbs (13.6 N-m) max |
| M10 Nut Torque | 120 in-lbs (13.6 N-m) recommended, 140 in-lbs (15.8 N-m) max |
| Mounting Holes | #10 (M5) and 1/4 inch (M6) |
| Material | Tin-plated copper |
General
| Cover | Integrated |
